WST-WG2LORA Bidirectional transmission
Using high quality electronic integrated wires module, Provide good electrical properties.

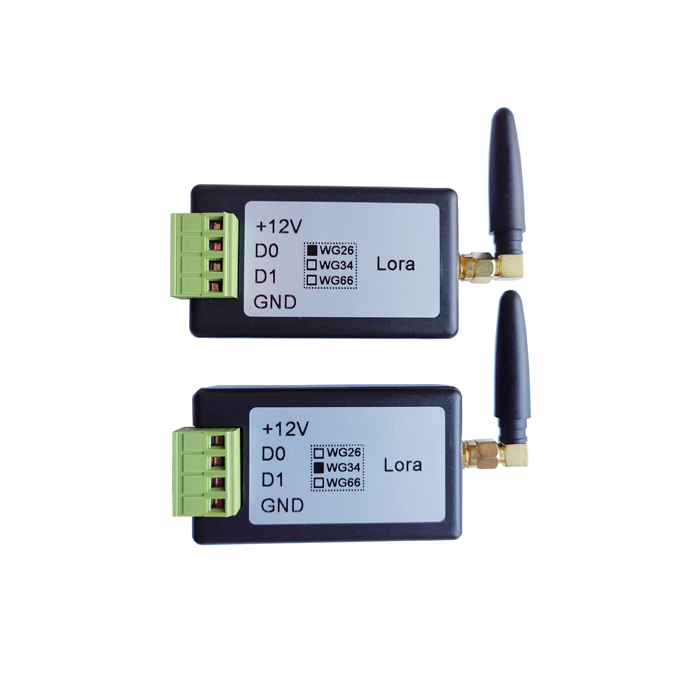

Support Wiegand 4bit/8bit, Wiegand 26bit, 34bit, 66bit, and other Wiegand bit
Support 15 different channels by DIP or 30 different channels by software command
Support ISAM 433Mhz, LoRa/wireless standard suit for most countries
Working with various kind of Wiegand device (Wiegand keypad, Wiegand reader, etc.)

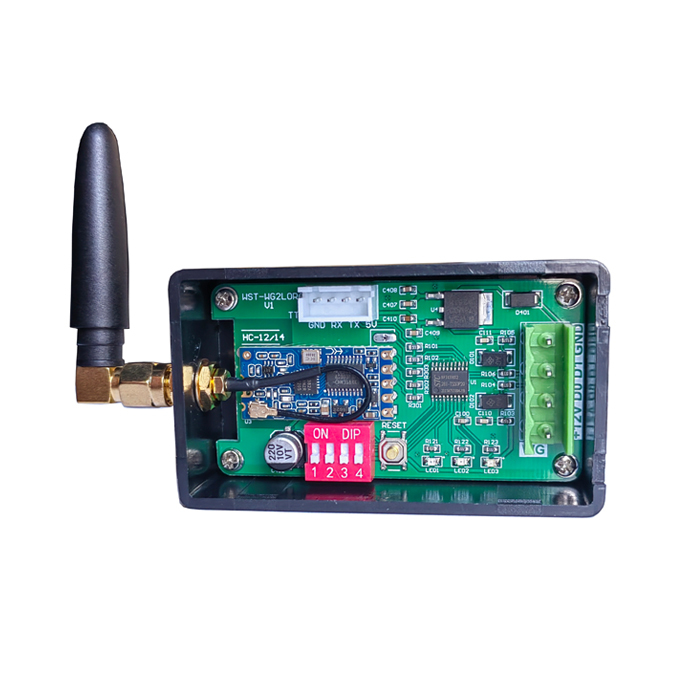

This converter design for where request Wiegand reader (Wiegand sender) but not easy or no plan to wiring the converters with reader or access controller. The converter works in pairs, a pair of converters consists of a sender and a receiver. Each device (converter) not only a sender but also a receiver, when two converters have same dial switch, they are a pair. The converter includes a 433MHz wireless module for communication, default working range about 500m, max 1000m, even more distance (after change to use a better wireless module) when customer request.

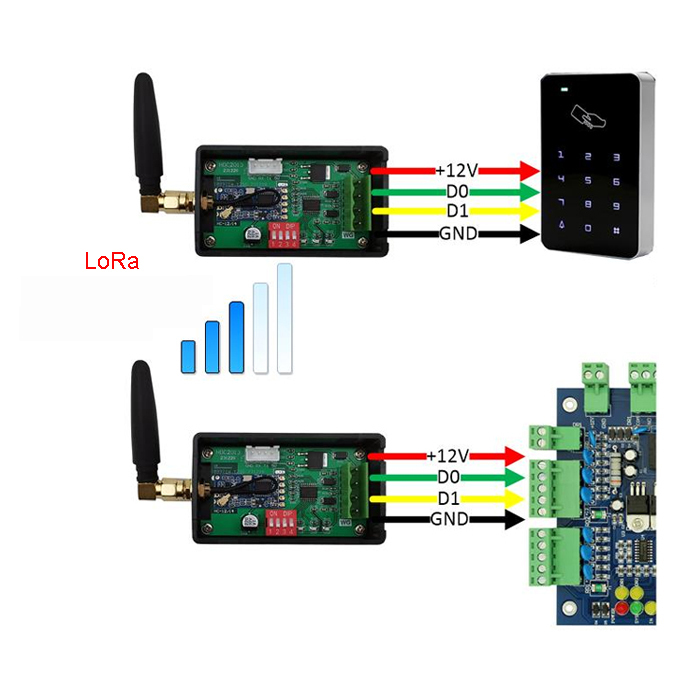

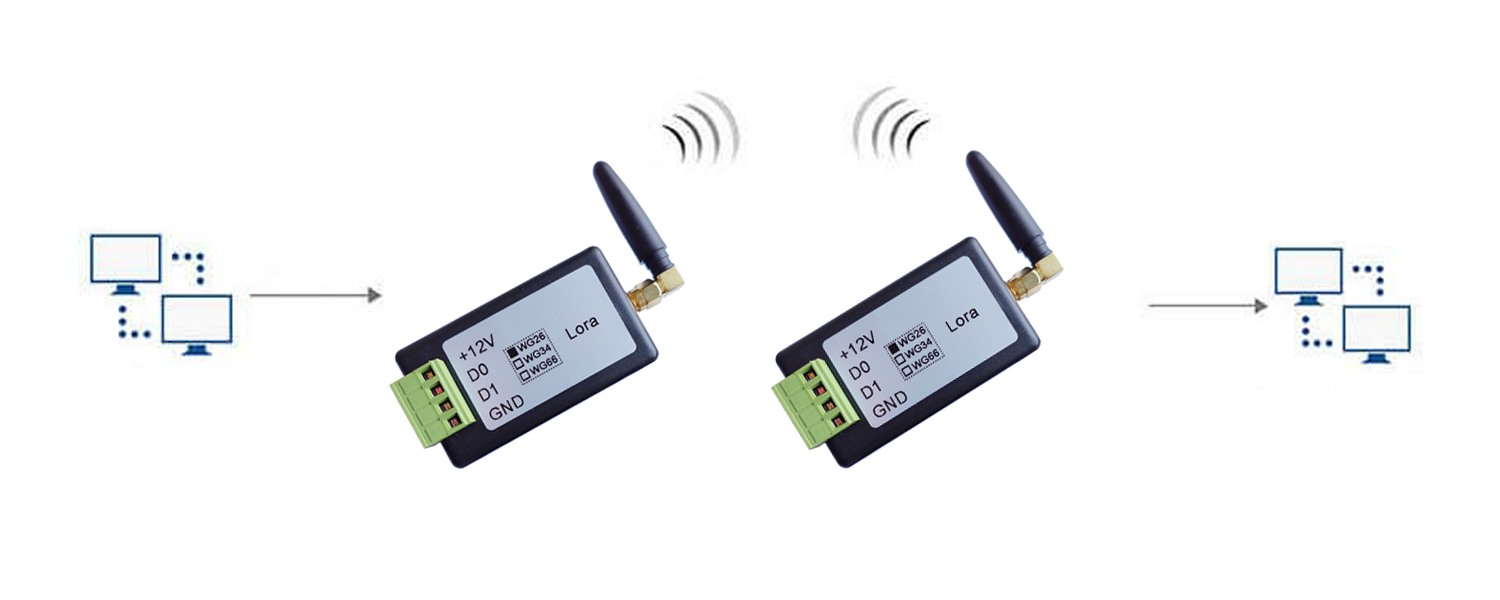

The device can realize bidirectional transparent data transmission between two converters (a pair of converters) from Wiegand to wireless (default 433MHz) network with simple setup. The device can transfer many Wiegand bit for example standard Wiegand 26bit, 34bit from sender to receiver by wireless and then send out to access controller or computer software to make a full security system,

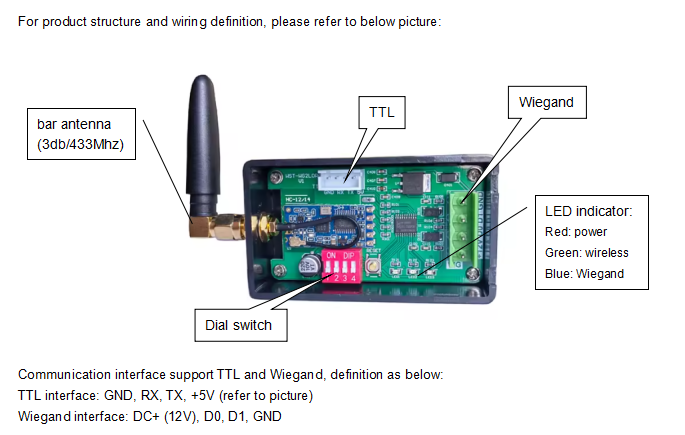

Converter can set address by manual work (set dial switch) or software (set command), it also keeps upgrade option by TTL interface when customer has any special project request customized order.
Product Features
Technical Parameter
