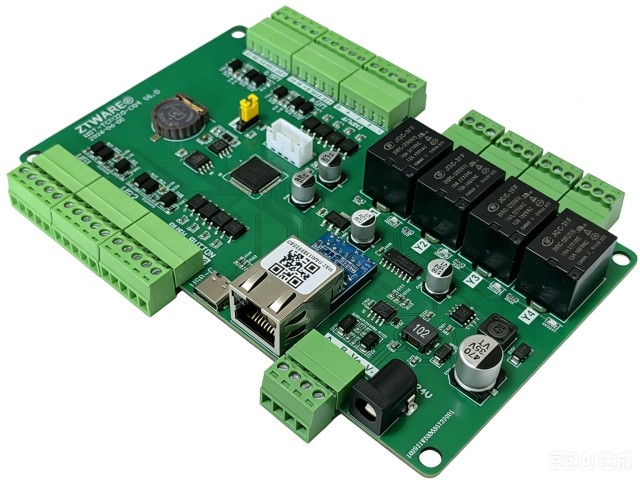

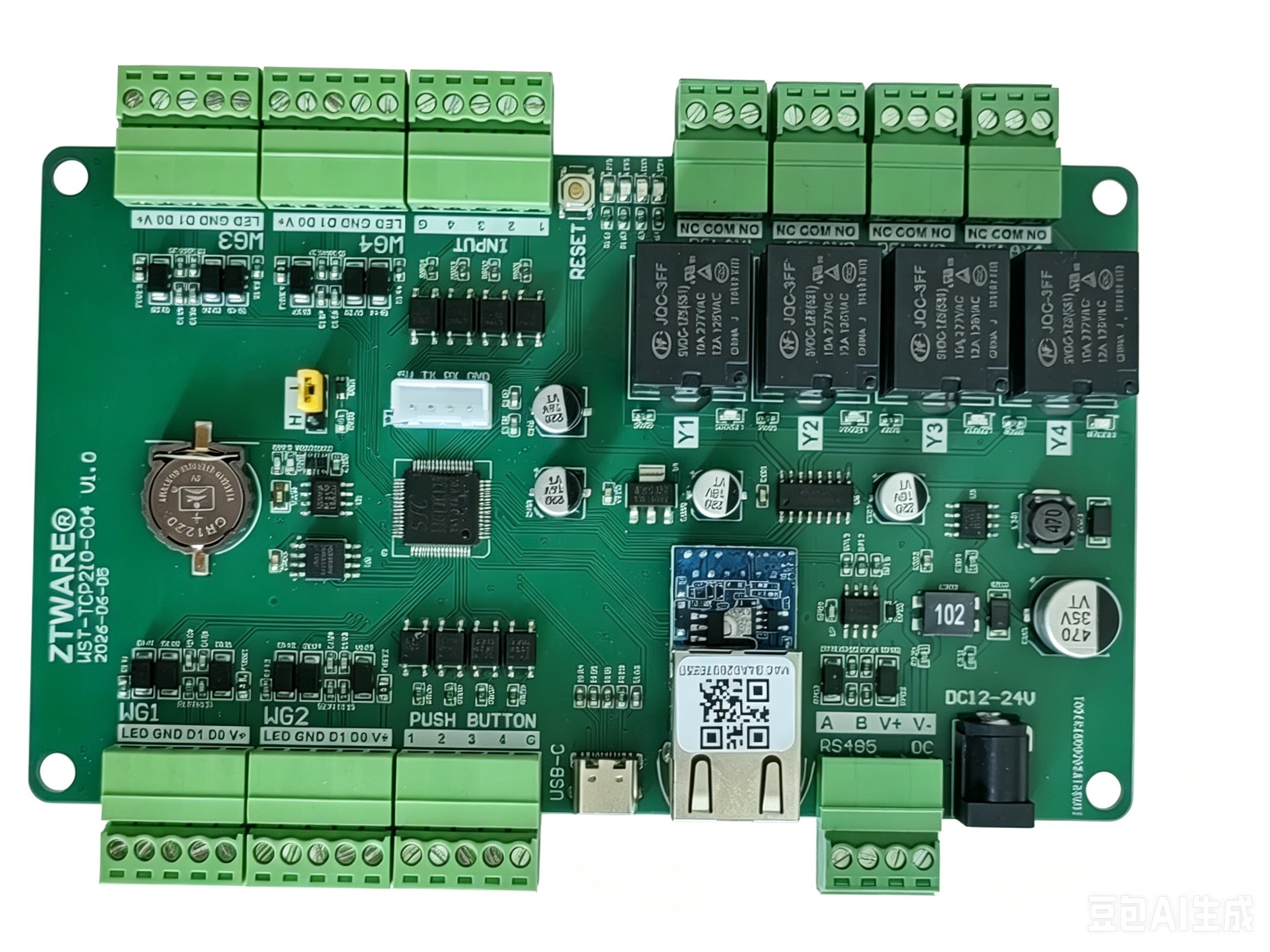

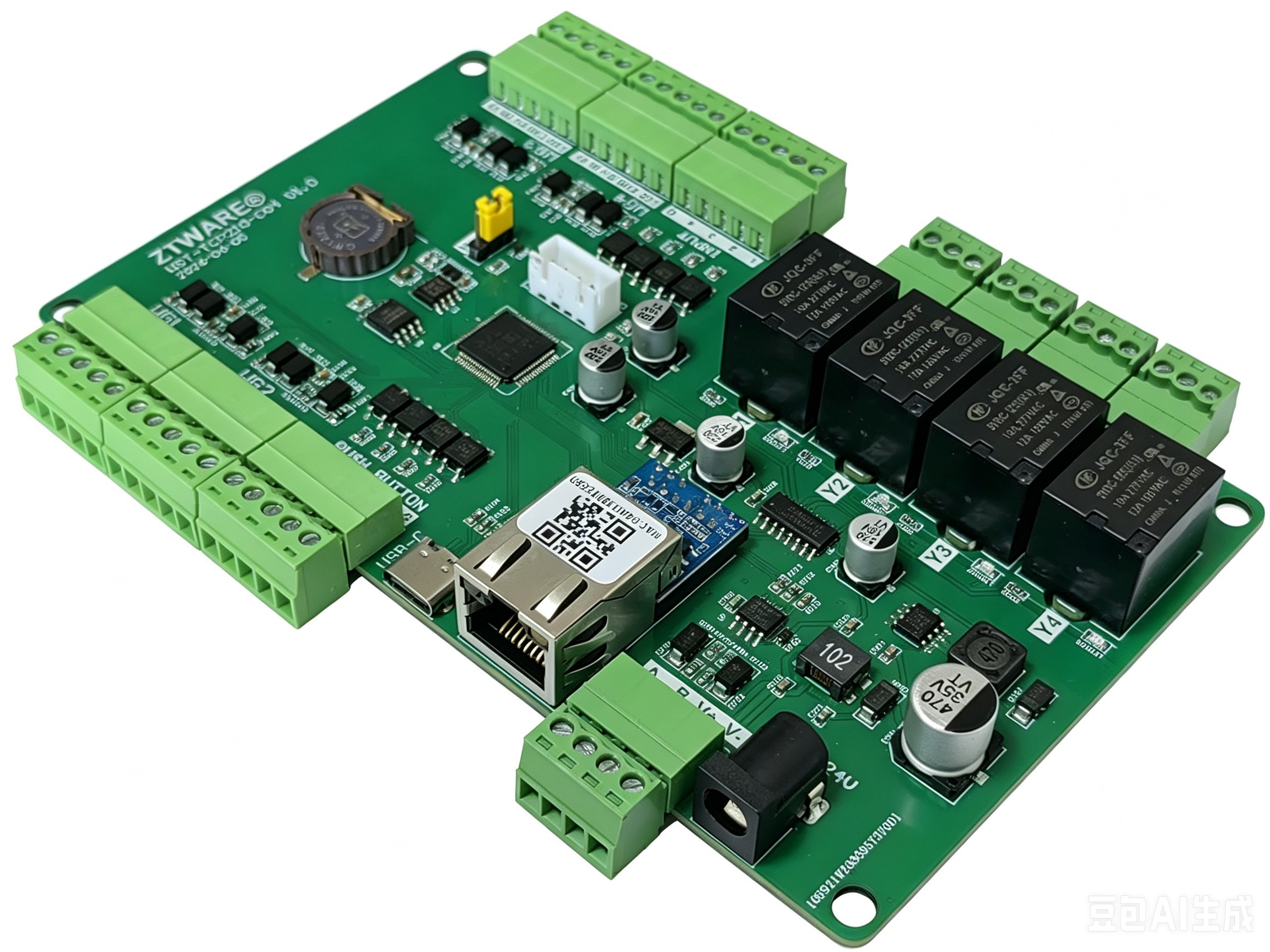

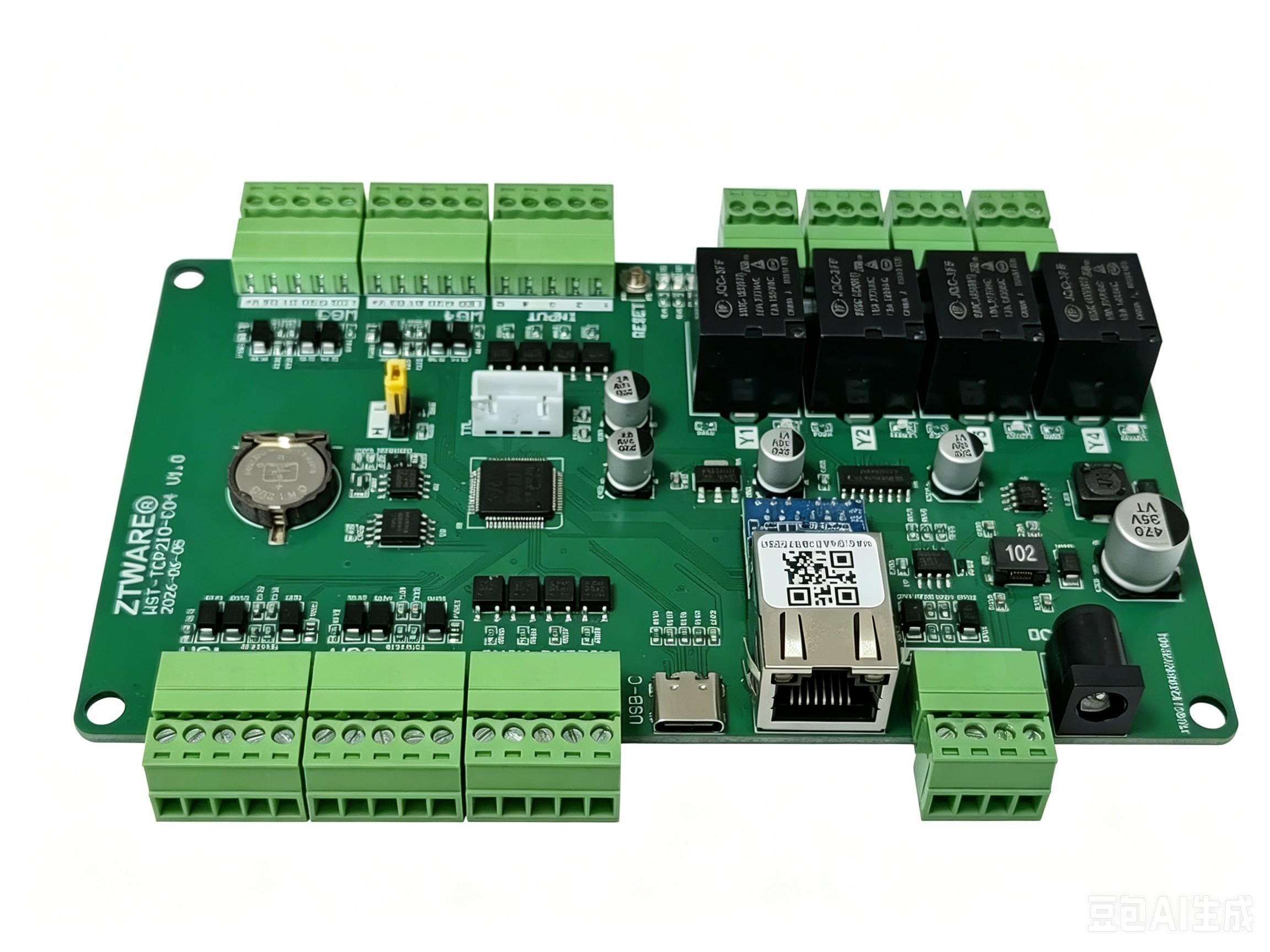

RS485&TCP/IP 4 channel wiegand 4 digit inputs 4 relay outputs IO control board with Door Access Control Extended Function

Model :WST-TCP2IO-C04

Using high quality electronic integrated module, Provide good electrical properties.

Support 4 channel Wiegand interface (input and output)

Support 4 channel dry contact electric input (IN1, IN2,IN3,IN4)

Support 4 channel of relay output (Relay 1, Relay2,Relay3,Relay4)

Support 4 channel of push button (PB1, PB2,PB3,PB4)

Type-C USB port

Working power: DC9V to DC24V (DC power)

Restore factory default (Reset button)

Upgrade firmware via TTL network (TTL)

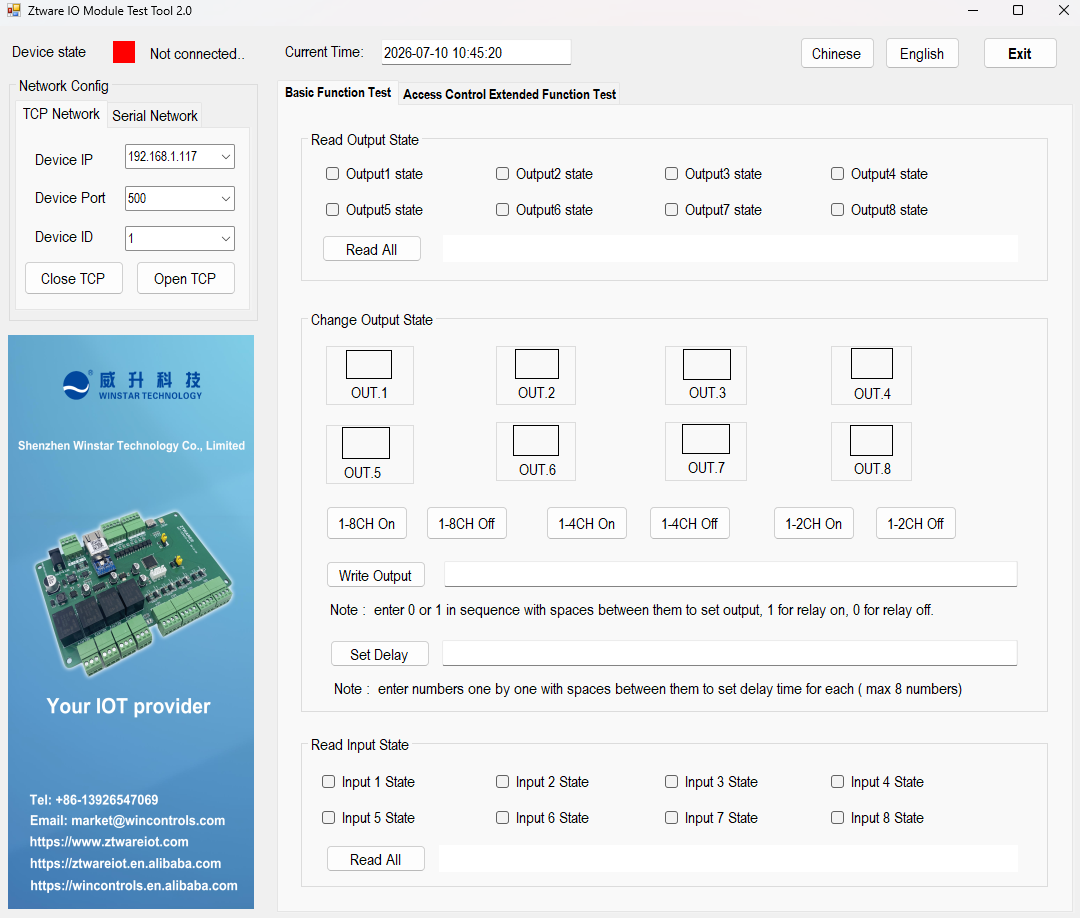

Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client

Across the gateway, switches, routers

Can work in LAN, also can work in the Internet (external network)

Support various LED to indicate work status

Guarantee reliable data transmission and long working life.

Set software watchdog timer (about 1s for restart) for keep the device working fine.

Size:147mm*110mm*20mm(151mm*110mm*45mm with housing)

Weight: about 220g (with plastic housing)

Power supply: DC9V to DC24V/1A, suggest DC12V

Static working current: <150mA (DC12V)

Dynamic current: when all relay closed less than 320mA (under DC12V power)

Wiegand interface: support 4CH Wiegand input and output (WG26/34/66 bit)

Input: support 4CH dry contact electric input (provide jump for set high/low level)

Output: 4 channel of relay output

Communication interface: 10M/100M RJ45 Ethernet and UART-TTL

Baud rate: 9600BPS (default, can set by software)

Address ID: none (defaults ID none, can set by command, range: 1 to 255)

Indicator: LED indicator for power, TCP/IP communication and Wiegand communication

Reset button: press it about 3s for return to factory settings

Communication interface: RS485

Network protocol: support Ethernet, ARP, IP, UDP, TCP, etc.

Ethernet user name: admin, Password: admin, Default IP: 192.168.0.7

Network mode: TCP client\server (max for 4 Clients), UDP Client\Server, HTTDP Client

TTL interface: DC5V, TX, RX, GND, design for testing and upgrade firmware.

Operating Temperature: -40-85 C (-40-185 F)

Storage Temperature: -40～85 °C（-40～185 °F）

Relative humidity: 5%-95% (no condensation)

Software watchdog timers: about 1s restart.

Average fault-free time: 100000 hours

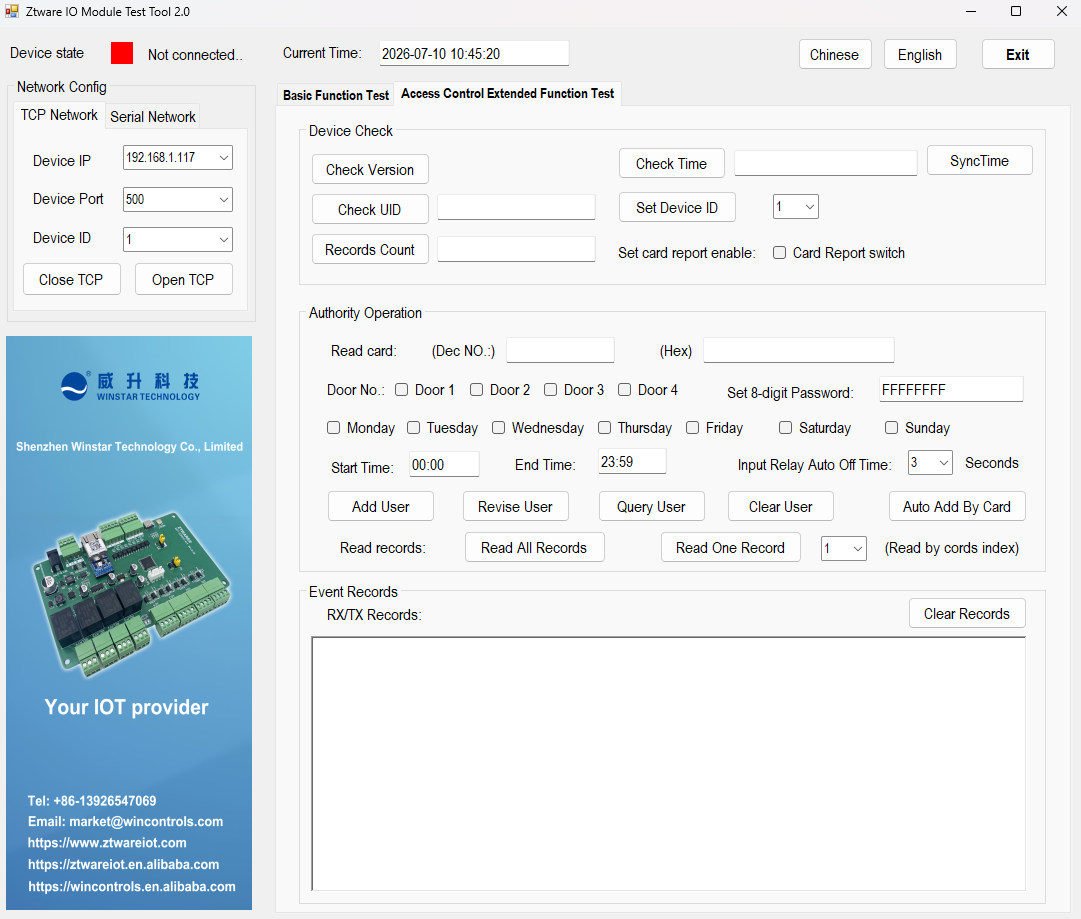

Maximum user permission: 20,000 (Actual: 32,768)

Major event records: 100,000(Actual:102,400)

Permission search + Lock release time: ≤ 100 ms

Supports four door independent time permissions

Supports a 20-digit user ID (8-byte Card Number)
