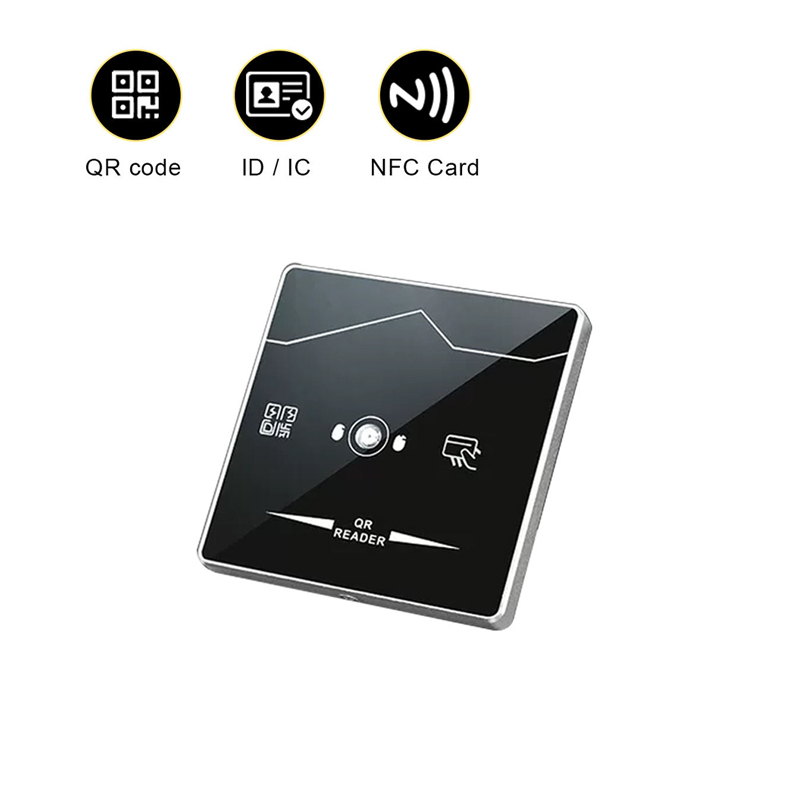

QR Code+RFID all in one Card reader

QR Code+RFID card Reader is a new generation of smart card reader developed by our company,the product Appearance adopts standard 86 box industry standards,fast scanning speed,high recognition rate,strong compatibility,It can be connected to any controller that supports Wiegand input and is suitable for various application scenarios.At present,it is widely used in the management of visitor entry personnel in business office buildings,the management of scenic tourist personnel,Community visitor access management,administrative hall access control,supporting gates,access control,visitro machines,Smart home,ect;perfect upgrade for traditional credit card systems in various industries.

Parameters

Size: 86mm*86mm*8mm

Reading card type: EM or Mifare card

Decording support: QR code,one dimensional code

Decoding mode: Image decoding

Reading feature: Auto-induction,beep hint

Interface: Wiegand/USB/RS232/RS485

Voltage : 5-15V

Reading range(card): 3-6cm

Reading range(Barcode):0-20cm

Workinig current: 800mA

Reading speed: <200ms

Material: Tempered glass(code window)+zinc alloy

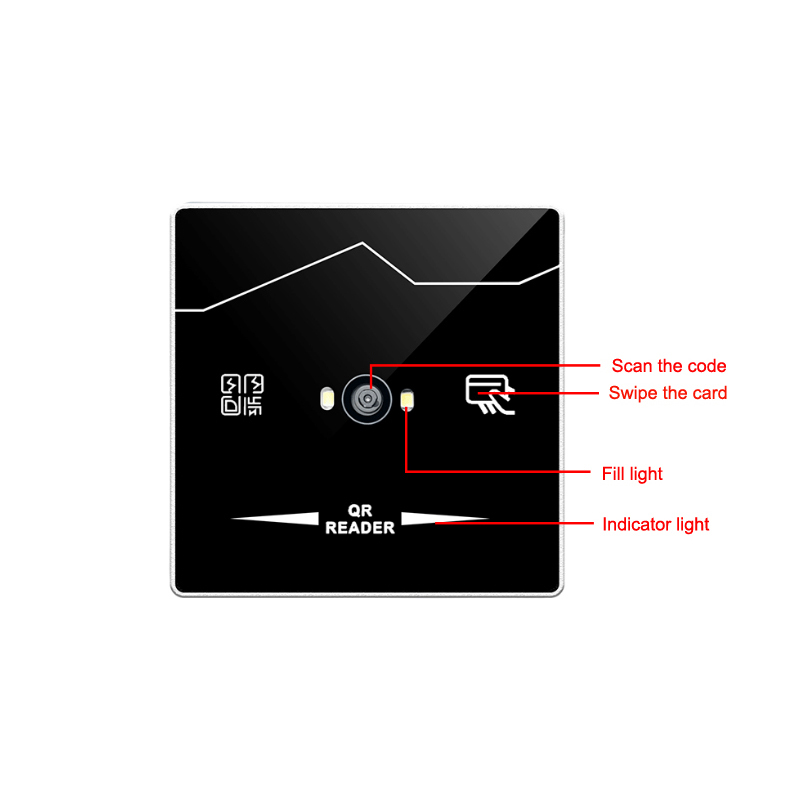

Indicating status light: Blue-work,Green-feedback

QR code supported formats: Code128,Code39,EAN-13,EAN-8,EAN-128,QR Code,ISBN-13,Data Matrix,PDF417,UPC-A

Reading angle: 360°, elevation angle ± 55°, tilt angle ± 55°

Scanning angles: 72° (horizontal), 54° (vertical), 84° (diagonal)
