The pressure transmitter features a high-performance diffused silicon core, highly integrated circuitry, anti-interference capabilities, stable signal output, and precise measurement and control. It employs a direct-insertion connection method, is made of flame-retardant material, and offers waterproof, dustproof, leakproof, and impact-resistant properties. It is suitable for measuring gas pressure, liquid pressure, and applications in pumps, air compressors, and related equipment.
Product Introduction
The pressure transmitter features a high-performance diffused silicon core, highly integrated circuitry, anti-interference capabilities, stable signal output, and precise measurement and control. It employs a direct-insertion connection method, is made of flame-retardant material, and offers waterproof, dustproof, leakproof, and impact-resistant properties. It is suitable for measuring gas pressure, liquid pressure, and applications in pumps, air compressors, and related equipment.
Technical Parameters

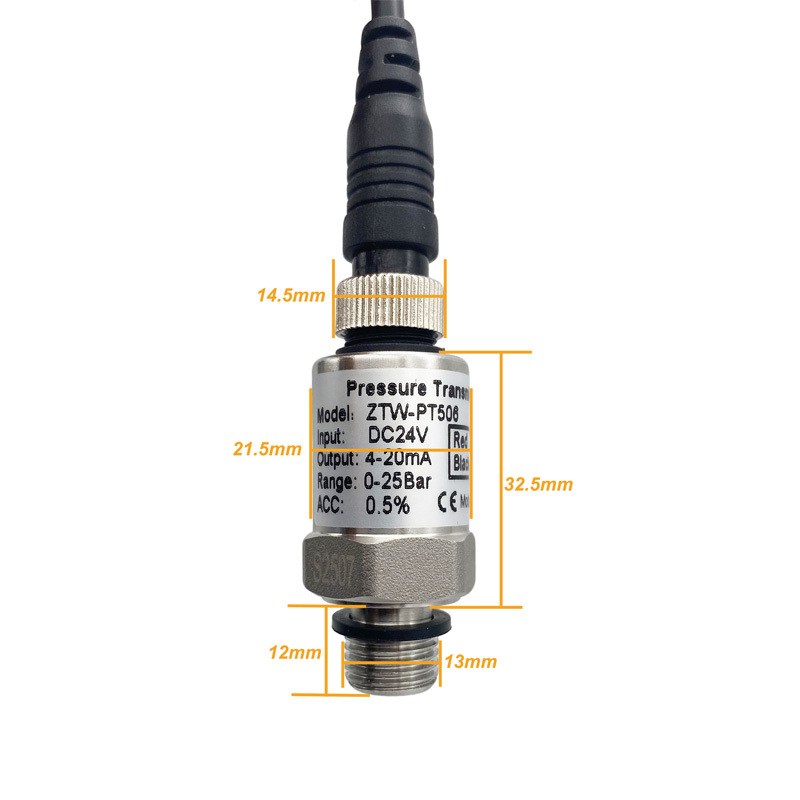

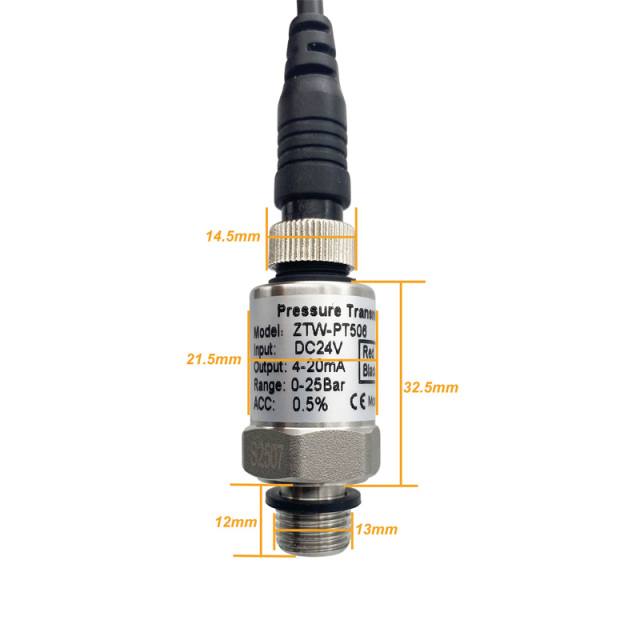

Model:ZTW-PT506
Power supply:DC24V
Output signal:4-20mA
Pressure range:0-25Bar
ACC:0.5%
Thread:G1/4

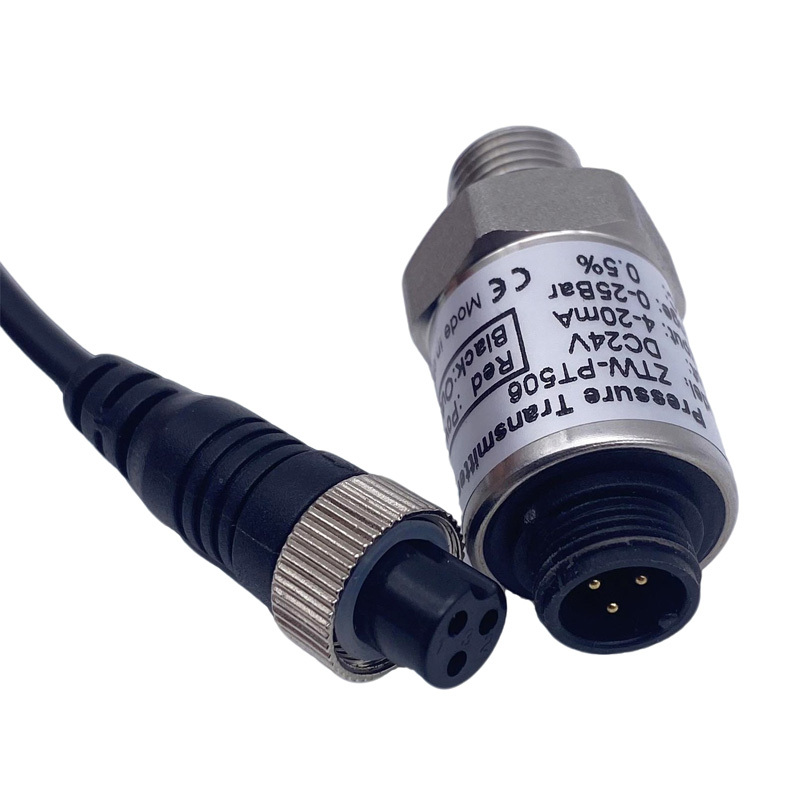

Plug type: M12 direct insertion
Medium temperature: -20~80 ℃

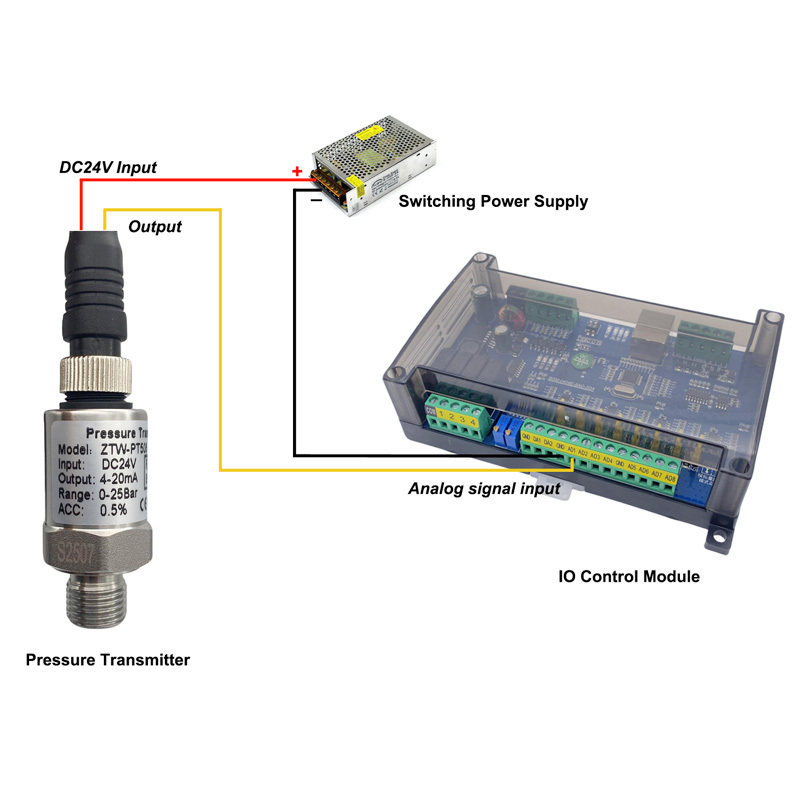

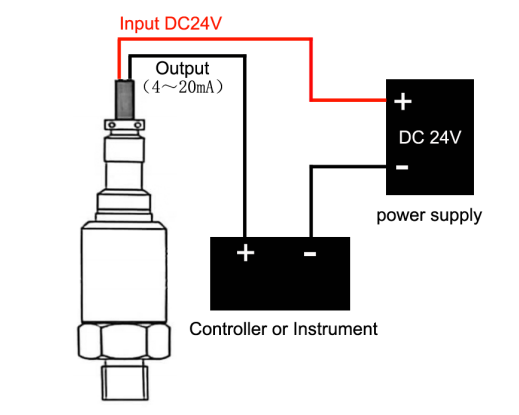

Wiring definition:
① Red line V+DC24 power input
② Black wire V-current output (4-20mA)
