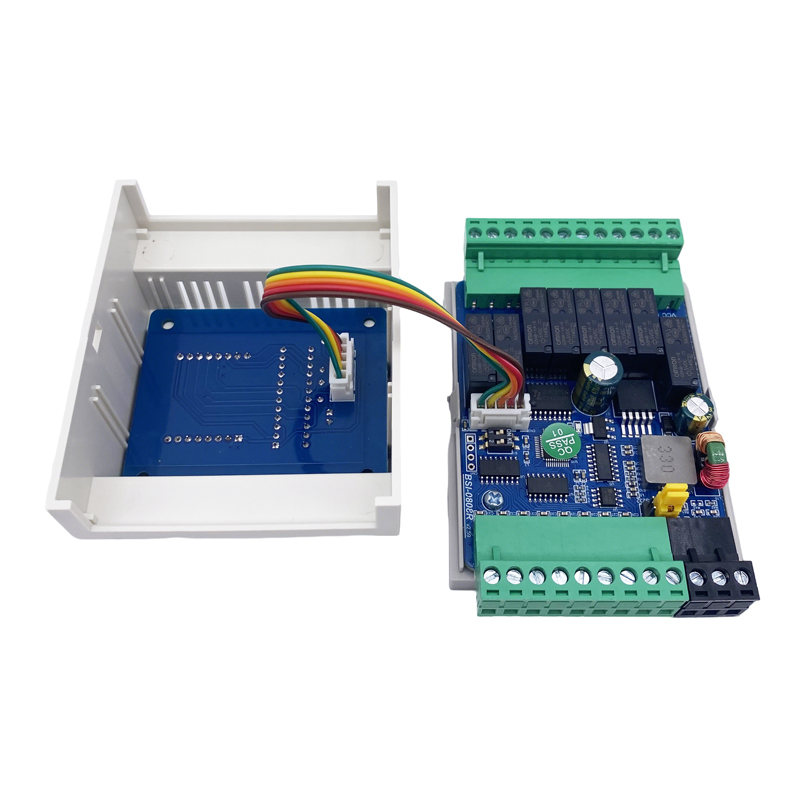

Support standard Modbus RTU communication protocol;
Can connect to industrial control touch screen, PLC,PC upper computer, ARDUINO, raspberry PI, etc;
Switch acquisition is compatible with high and low level signal input modes;

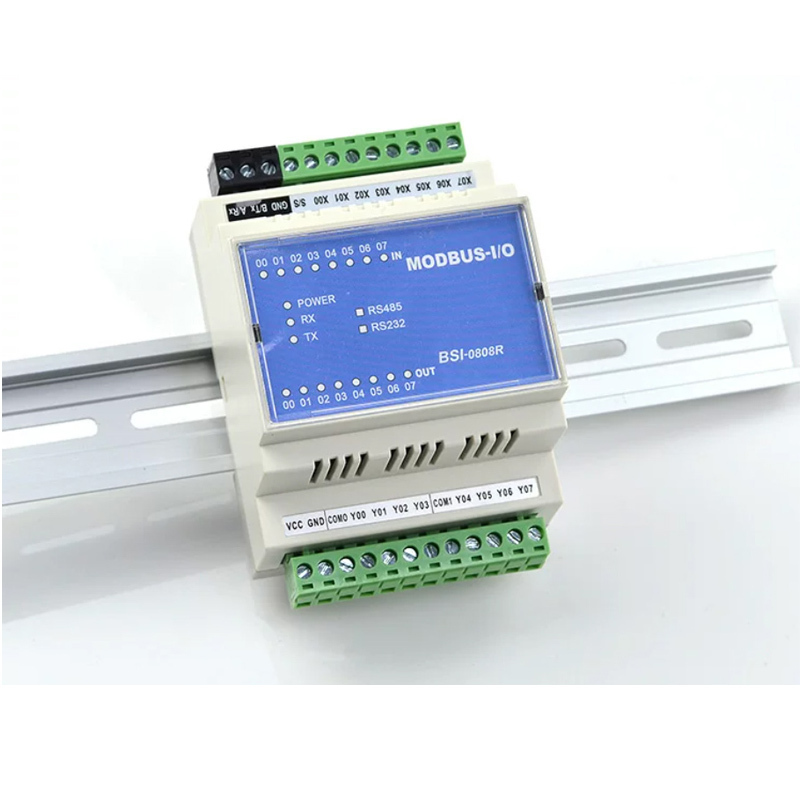

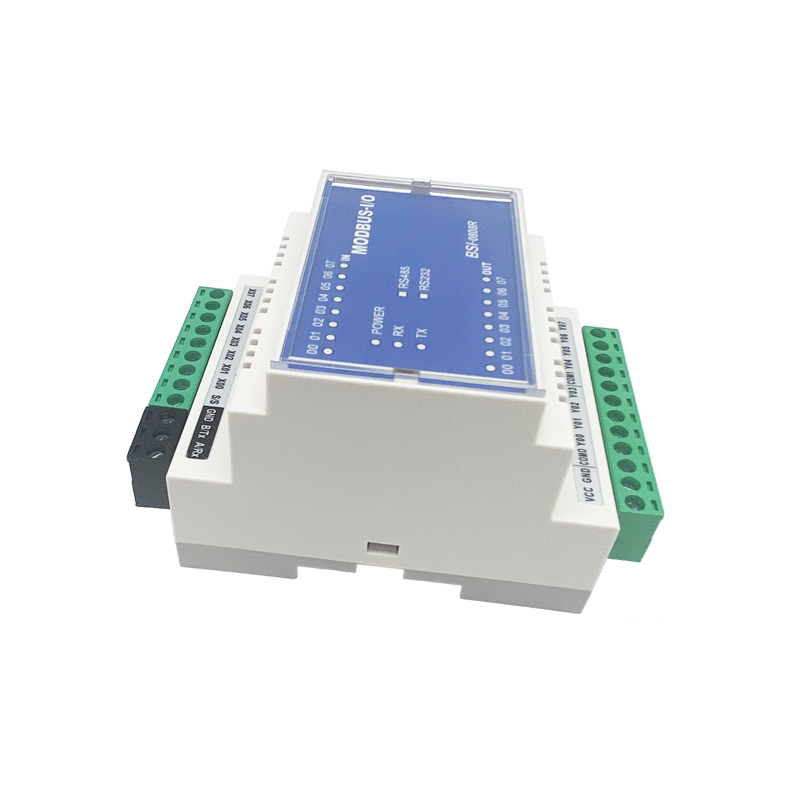

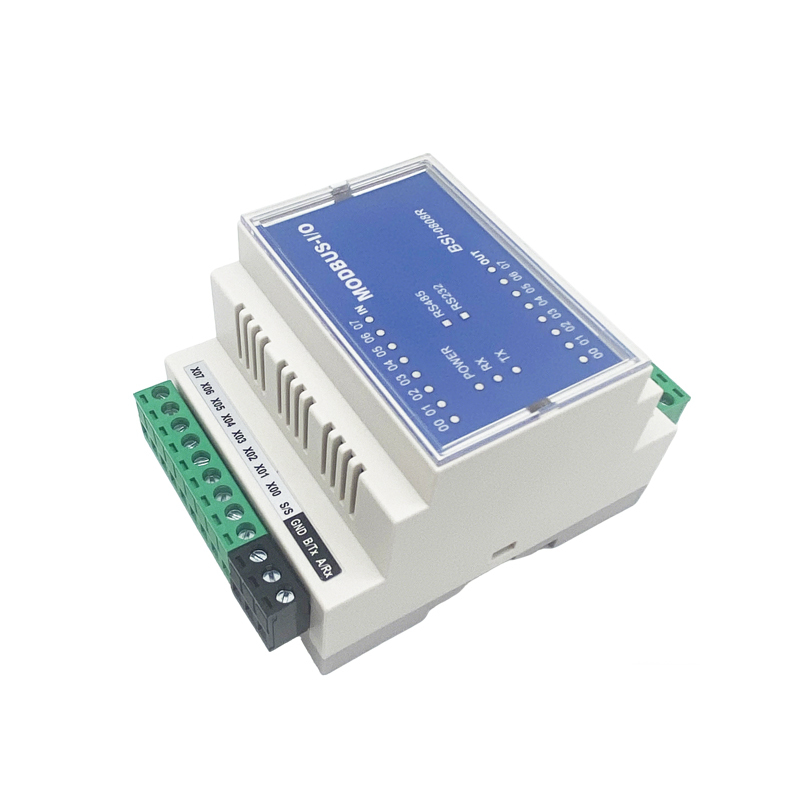

Install to Standard DIN35 rail;

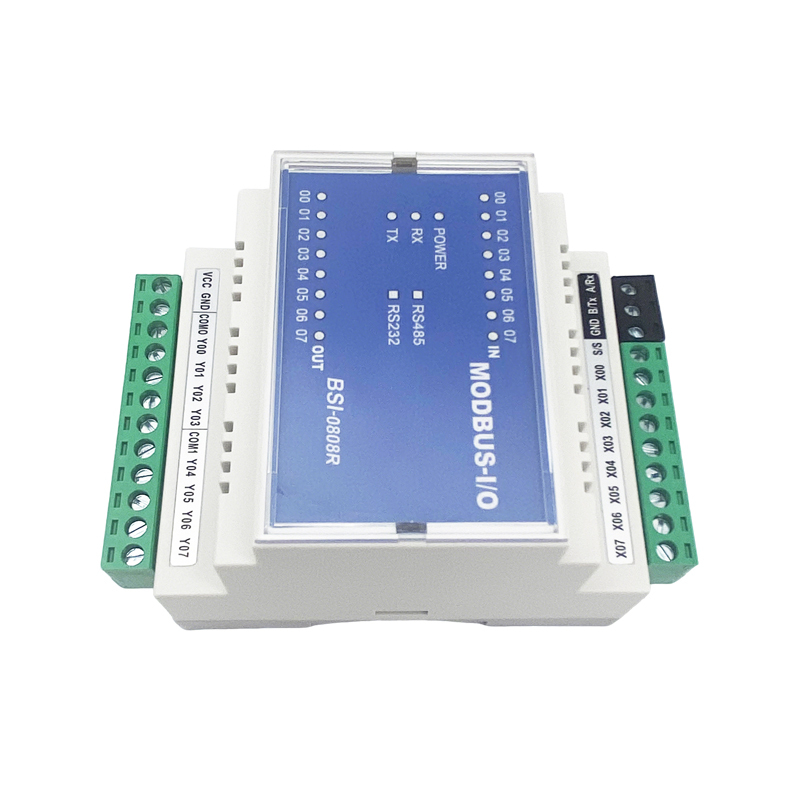

Each channel has an LED indicator;

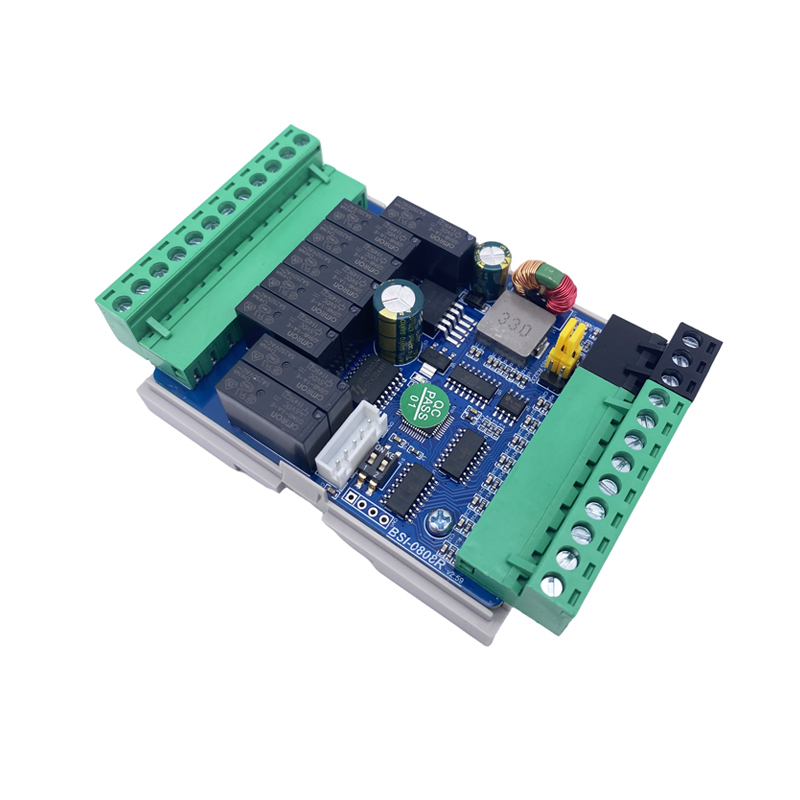

RS232 and RS485 share the same interface (selected via a jump cap).
Technical Parameters
|
Item |
Specification |
|
supply voltage |
DC9V-48V |
|
Switching output type |
Relay dry contact |
|
Switching signal acquisition |
DC12V-24V |
|
Digital input |
8 channel input(Y00、Y012、Y02、Y03......Y07) |
|
Relay output |
8 channel output(X00、X01、X02、X03、X04、...X07) |
|
Communication interface |
RS232,RS485(selected via jump cap) |
|
Baud rate |
9600 |
|
Station number |
Default value: 1 (can be modified through software, range 1-255) |
|
Communication protocol |
ModbusRTU standard protocol |
|
Installation |
DIN35 rail |
|
Max. output current |
Relay: 5A250V |
|
Output response time |
Relay: below 20ms |
|
Working temperature |
-40 ～ +70℃(No icing, no condensation) |
|
Working humidity |
5 ～ 85%RH |
|

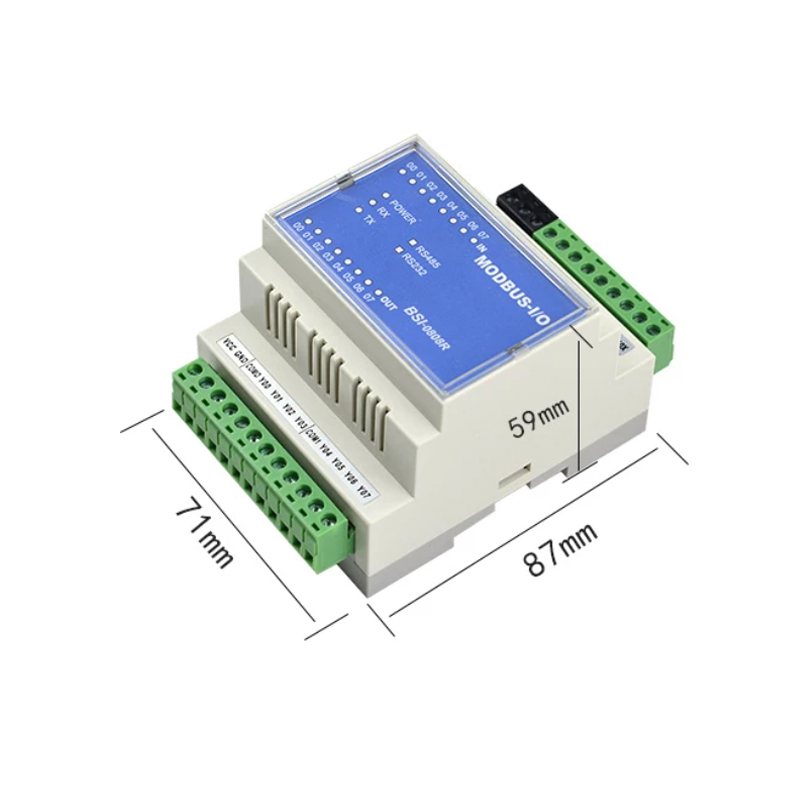

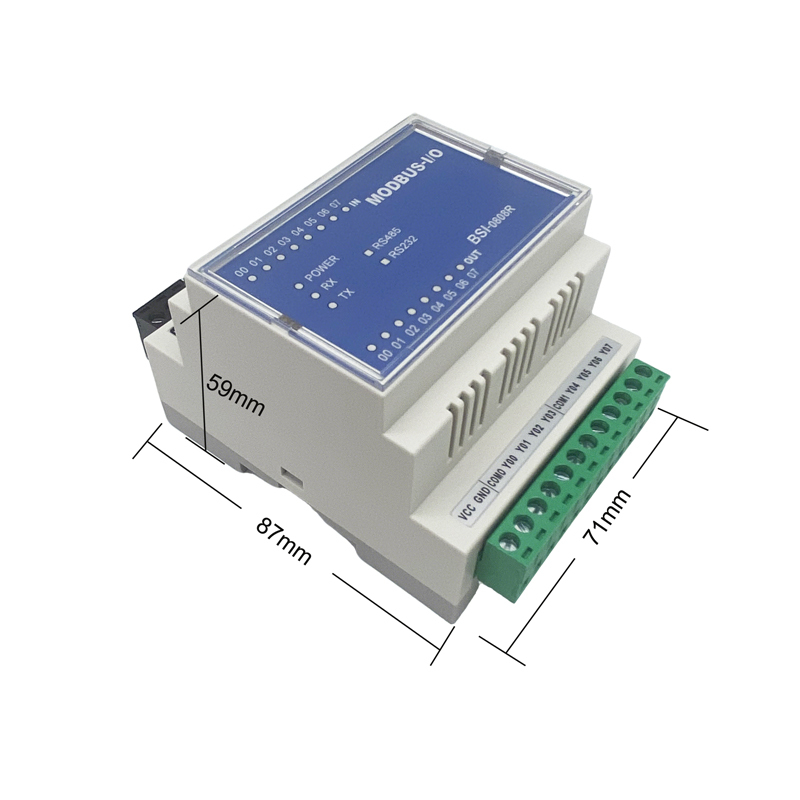

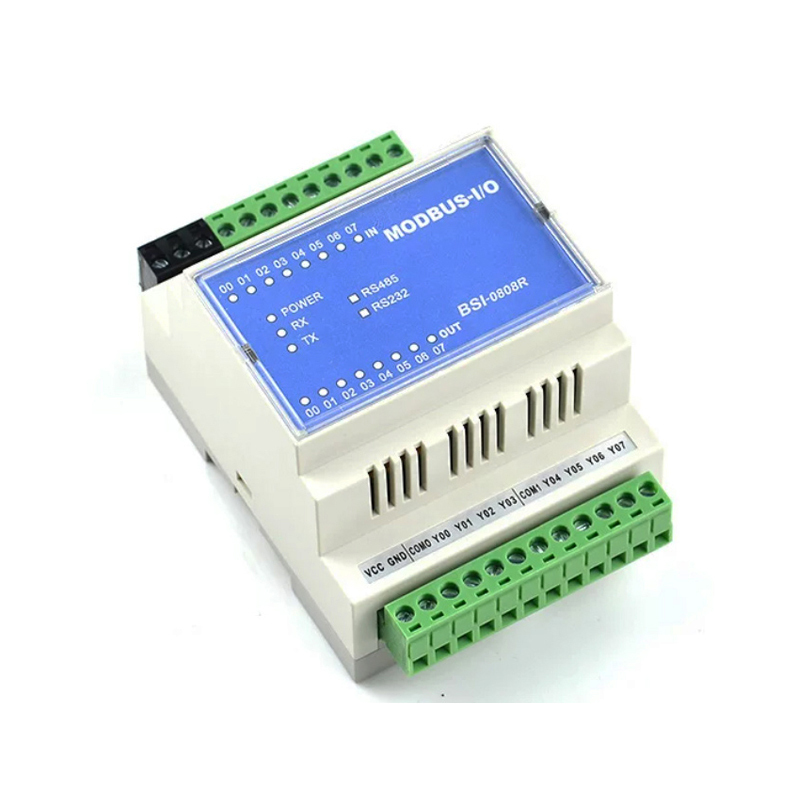

Dimension(with housing) |
71mm*87mm*59mm |
|
Net weight |
198g |
|
Package dimension |
135mm*120mm*70mm |
Product outline dimension(mm)
