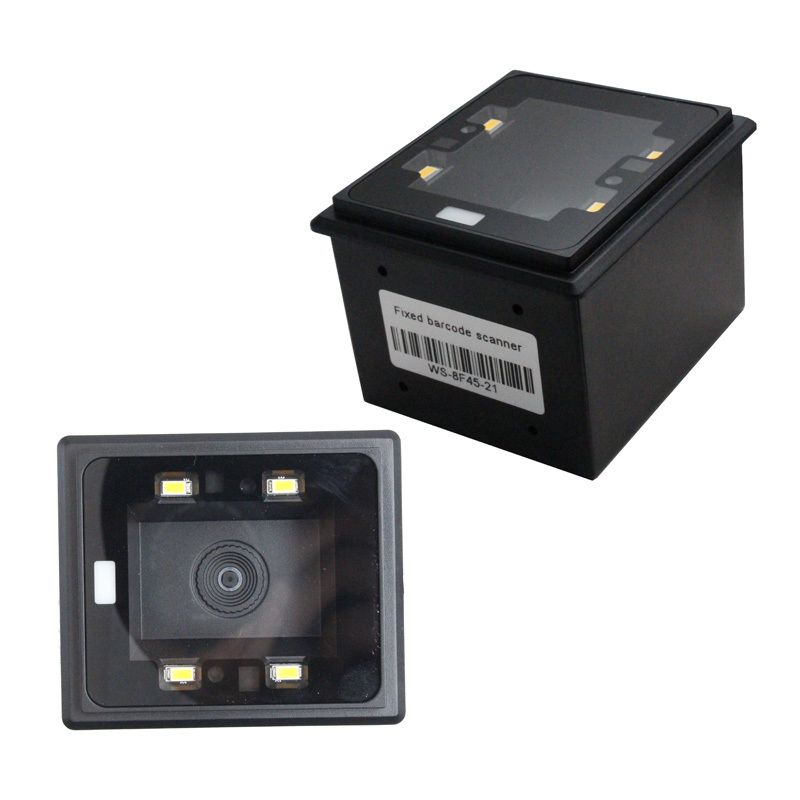

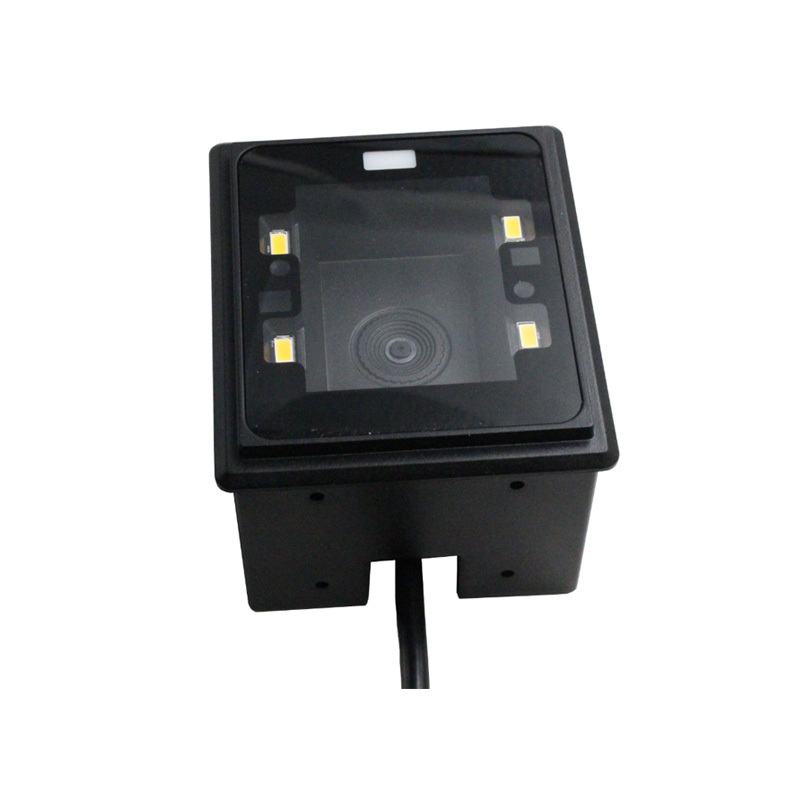

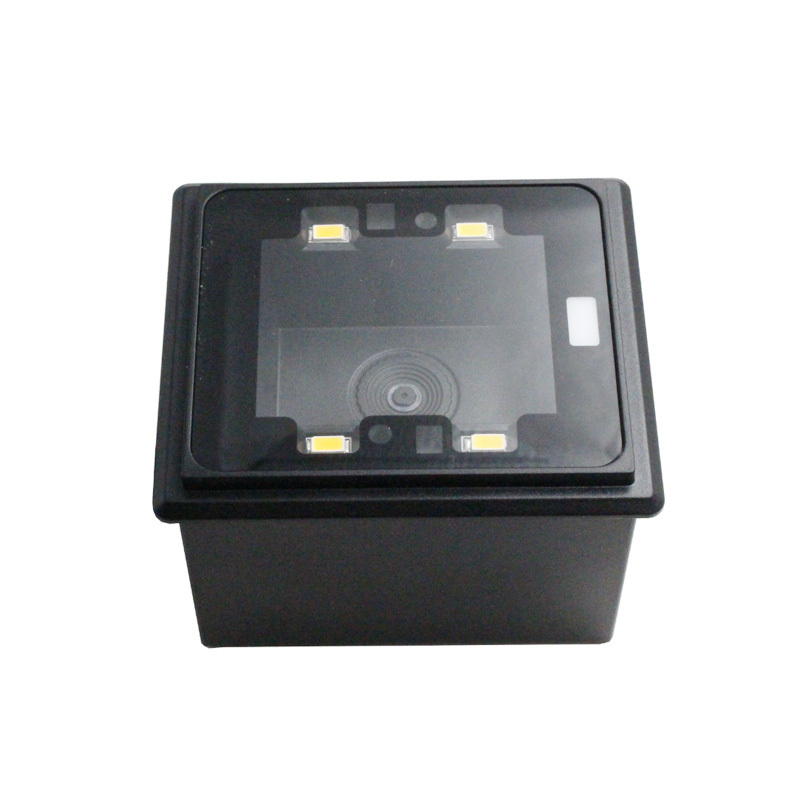

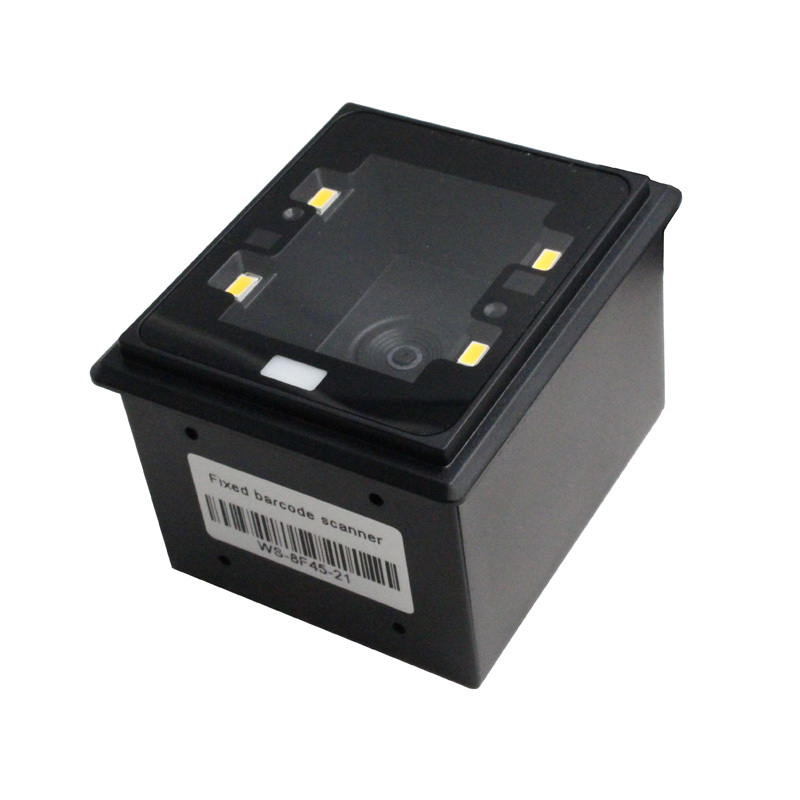

WS-8F45-21 Fixed mounted barcode scanner
Product Feature
Adopt the self-developed core decoding technology, can fastly read large amount of various filmed on-screen 1D/2D barcode.
High protection level,prevent from any external intruder.
Embedded housing design, specially designed for all kinds of self-service terminals.
Infrared/light sensing trigger, when scanned objects come close to scan window, the device instantly starts quick reading.
Product Feature
Adopt the self-developed core decoding technology, can fastly read large amount of various filmed on-screen 1D/2D barcode.
High protection level,prevent from any external intruder.
Embedded housing design, specially designed for all kinds of self-service terminals.
Infrared/light sensing trigger, when scanned objects come close to scan window, the device instantly starts quick reading.
Scenarios：
Express delivery cabinet, vending/verifying terminal, display kiosk and any other self-service terminals
Parameters
|
Performance |
Image Sensor |
|
640H*480V |
|
|
|
Illumination |
|
White LED |
|
|
|
Aiming |
|
Red LED (625nm) |
|
|
|
Symbologies |
2D |
PDF417, Data Matrix, QR Code，Micro QR Code |
|
|
|
|
1D |
Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128,GS1 Databar, Matrix 2 of 5, Code 11, Industrial 25, Standard 25, ISSN, Plessey, MSI-Plessey,AIM 128 |
|
|
|
Precision* |
|
≥3mil（Code 128） |
|
|
|
Typical Depth of View* |
1D EAN13 |
5mil 50-160mm |
|
|
|
|
|
13mil 50-260mm |
|
|
|
|
2D QR Code |
15mil 30-170mm |
|
|
|
|
|
30mil 50-270mm |
|
|
|
Sensitivities** |
pitch |
±60°(QR 30 mil) |
|
|
|
|
tilt |
360° |
|
|
|
|
skew |
±60°(QR 30 mil) |
|
|
|
Field of Angle |
|
Horizontal 68° Vertical 51° Diagonal 84.8° |
|
|
|
Symbol Contrast* |
|
≥20%（Code 128） |
|
|
Mechanical/Electric |
Communication Interface |
|
USB，TTL232，RS232（optional） |
|
|
|
Connection |
|

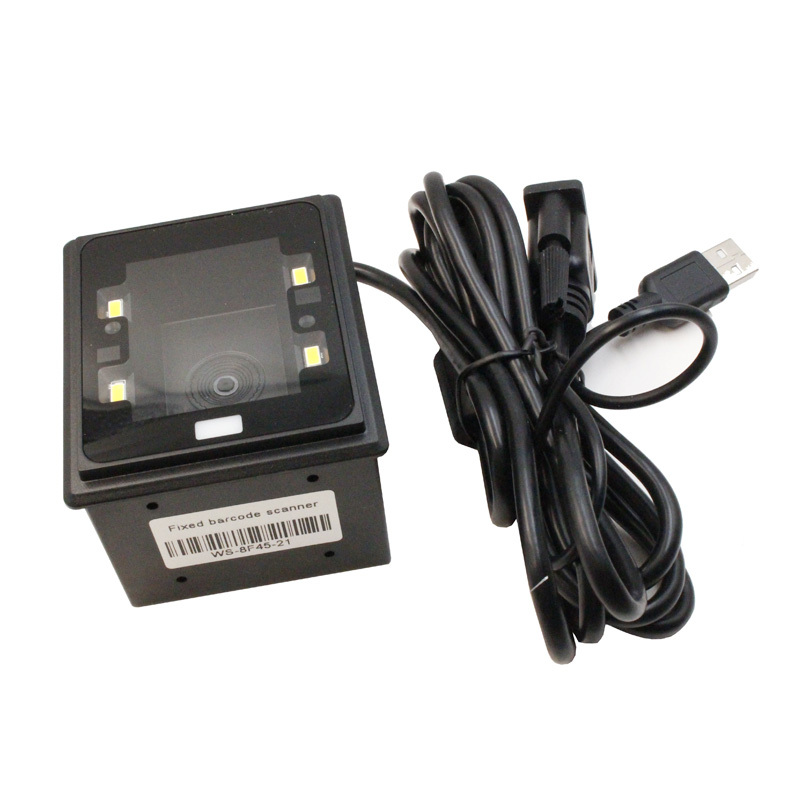

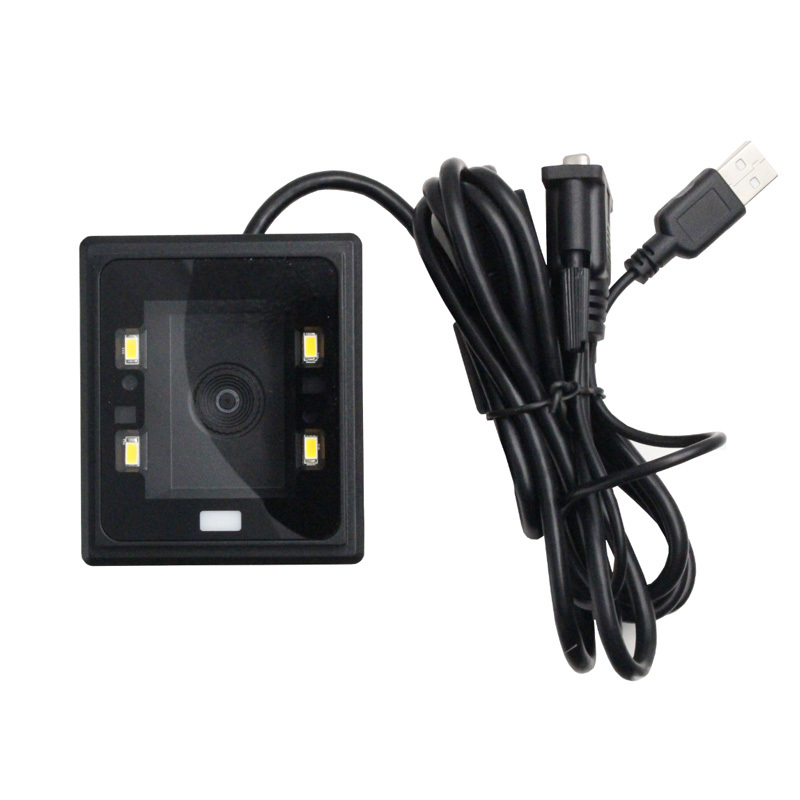

2m USB cable or 2m RS232 cable（USB power on） |
|
|
|
Size(mm) |
|
78.4*67.2*53.2（mm) （Max size） |
|
|
|
Weight |
|
185.9g（with 2m USB cable） |
|
|
|
Operation Voltage |
|
5.0 VDC±10% |
|
|
|
Rated Consumption |
|
720mW(Typical Value) |
|
|
|
Current |
Operation Current |
218mA（Typical Value），234mA（Max Vaule） |
|
|
|
|
Standby Current |
52.8mA |
|
|
Environmental |
Operation Temperature |
|
-20℃~+55℃ |
|
|
|
Storage Temperature |
|
-40℃~+70℃ |
|
|
|
Operation Humidity |
|
5%~95%（non-condensing） |
|
|
|
Illumination |
|
0~100,000LUX |
|
|
Certification |
|
|
FCC Part15 Class B,CE EMC Class B, RoHS2.0, IEC62471 |
|
