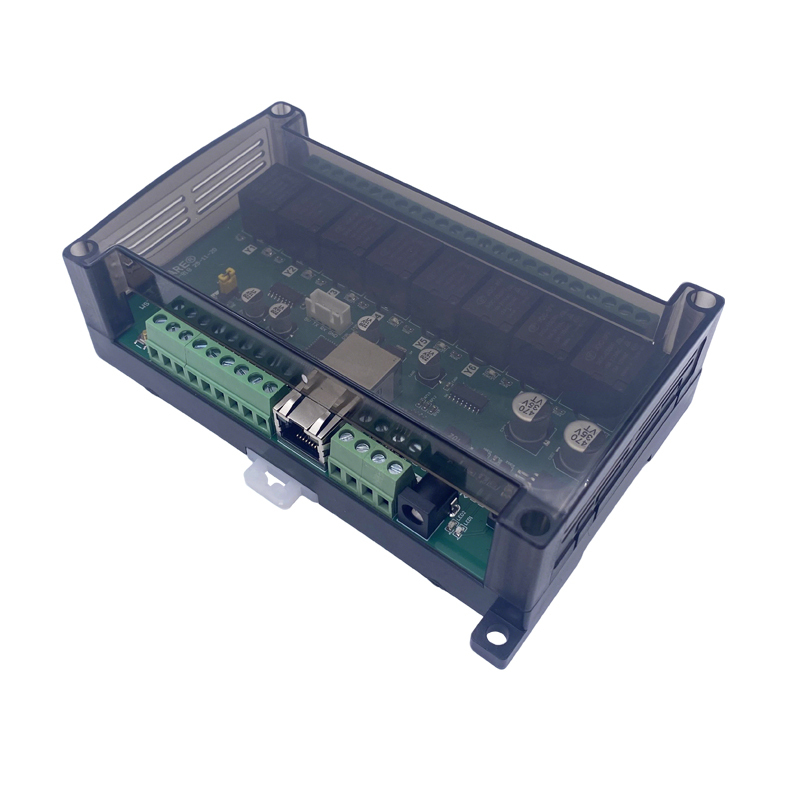

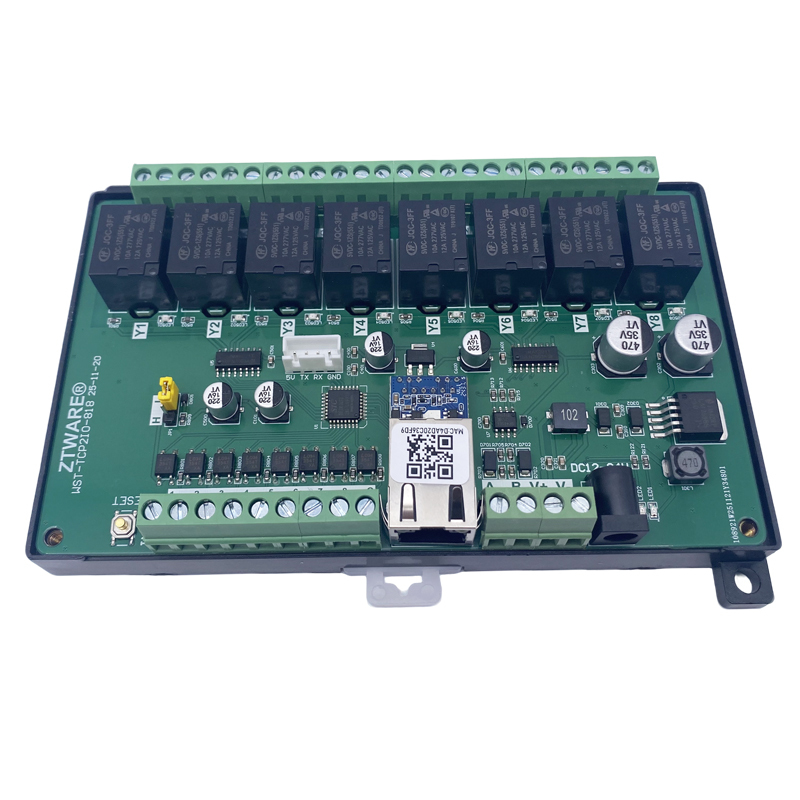

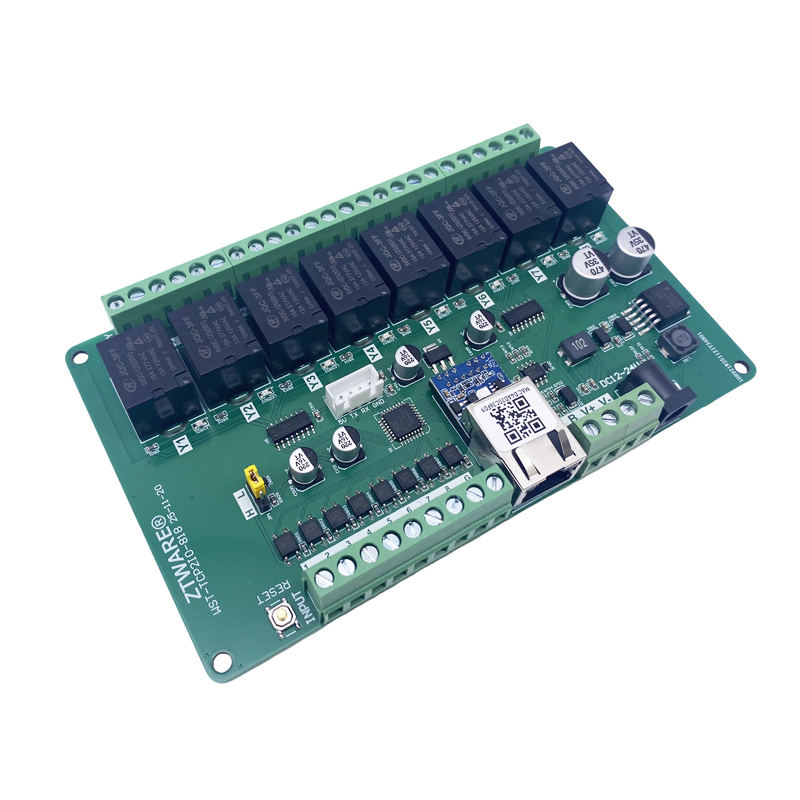

8 channel relay TCP/IP RS485 IO board

Name: 8 channel relay TCP/IP RS485 IO board
Brand: Changsha Ztware IOT Technology Co.,Ltd
Availability: InStock
Rating: 5 (1 reviews)

WST-TCP2IO-818 is a high performance and good price IOT network module. It has 8 channels of digital input and output interfaces with a 10M/100M Ethernet RJ45 port can be compatible for correspondence of TCP/IP communication. User can easily and quickly integrate WST-TCP2IO-818 into own system to realize remote, LAN and local control which based on Ethernet and RS485. It was developed to interface industry control area such as automatic light system, motor control, door access control, etc. The device is easy to be connected and can be remotely control by computer (include laptop, Raspberry Pi, Jetson nano, etc.) based on our free SDK. The controller working on DC12V to DC24V wide power supply, and the relay output can be controlled of AC105V to AC250V (10A) equipment.

GET A QUOTE

Description

Product Features

Using high quality electronic integrated module, provide good electrical properties.
Support 8 channel digit input and 8 channel digit output (relay output)
Working power: DC12V or DC24V
Restore factory default
Upgrade firmware via TTL network
Work mode: RS485, TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client, Modbus RTU
Across the gateway, switches, routers
Can work in LAN, also can work in the Internet (external network)
Support various LED to indicate work status
Guarantee reliable data transmission and long working life.
Free SDK (protocol, testing software and so on)
Support customization (OEM/ODM)
