Data acquisition control
Network I/O controller
Standard MODBUSRTU/TCP/UDP protocol
Ethernet remote switch
serial communication server
Dimension:95*90*43mm
Power voltage:DC9-48V(Analog function module DC12-48V)
Switch output type:Relay dry contact /NPN transistor
Switch signal acquisition:DC12-24V
Communication Baud rate: 9600bps
Analog input type*1: 0-20mA/0-10V
Analog output type*1:0-20mA/0-10V
Housing material: engineering plastic
Installation: DIN35 rail

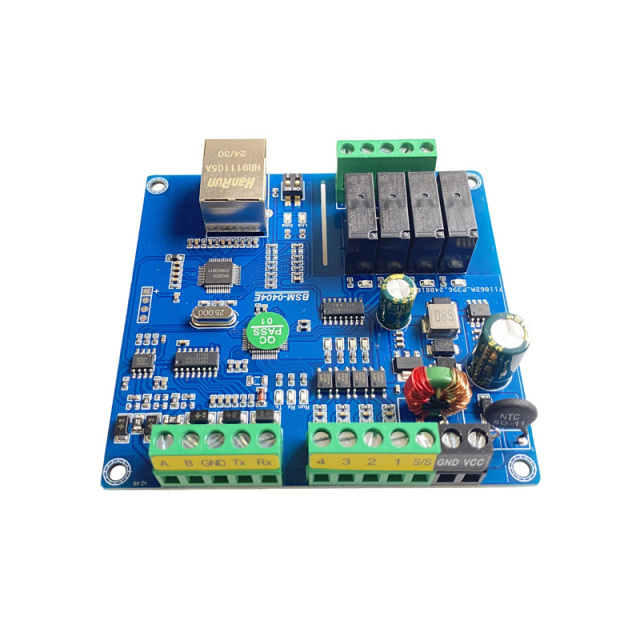

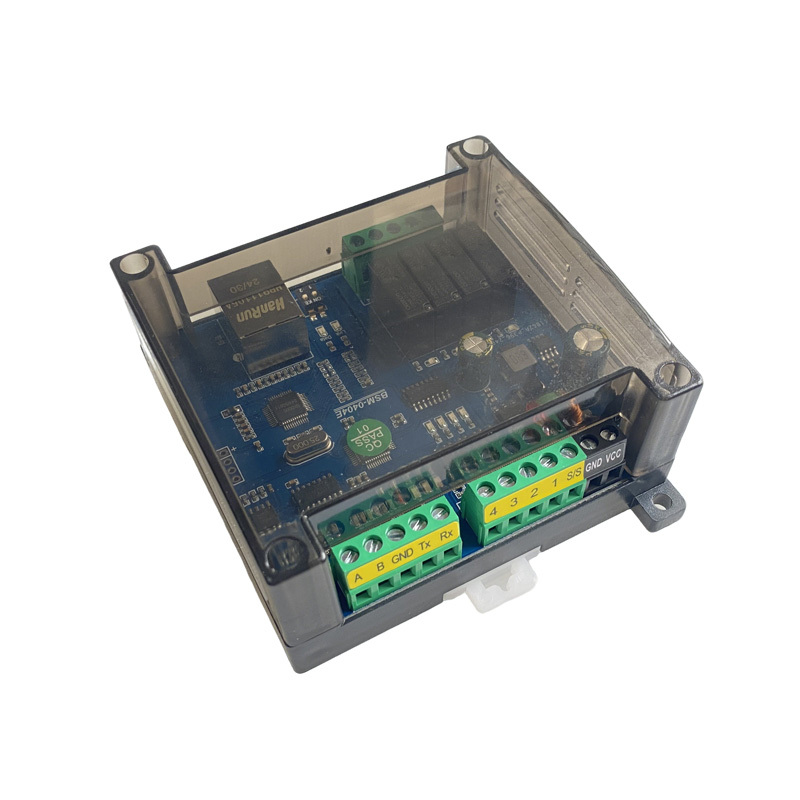

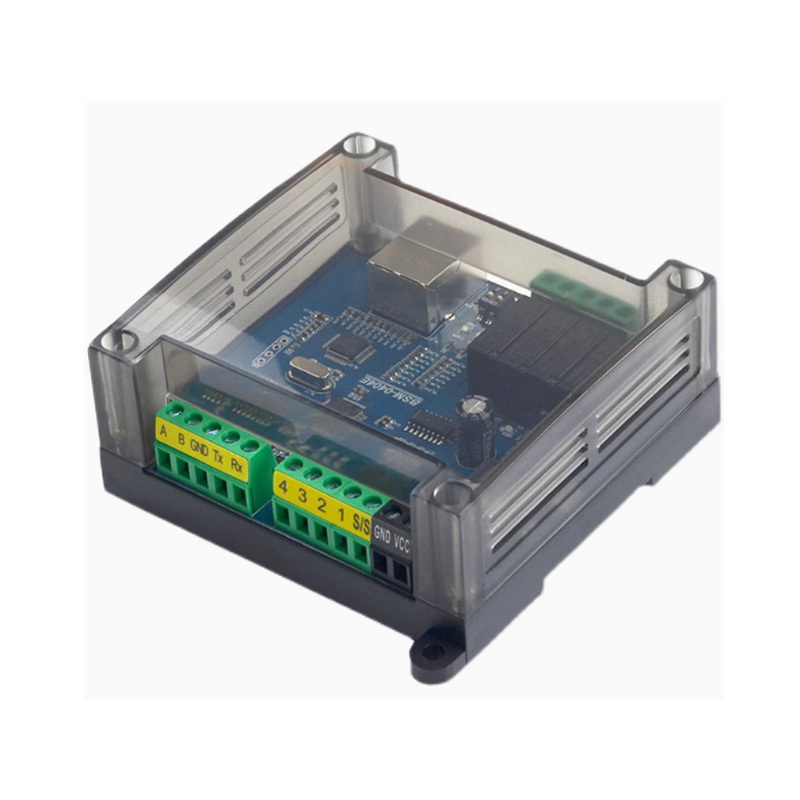

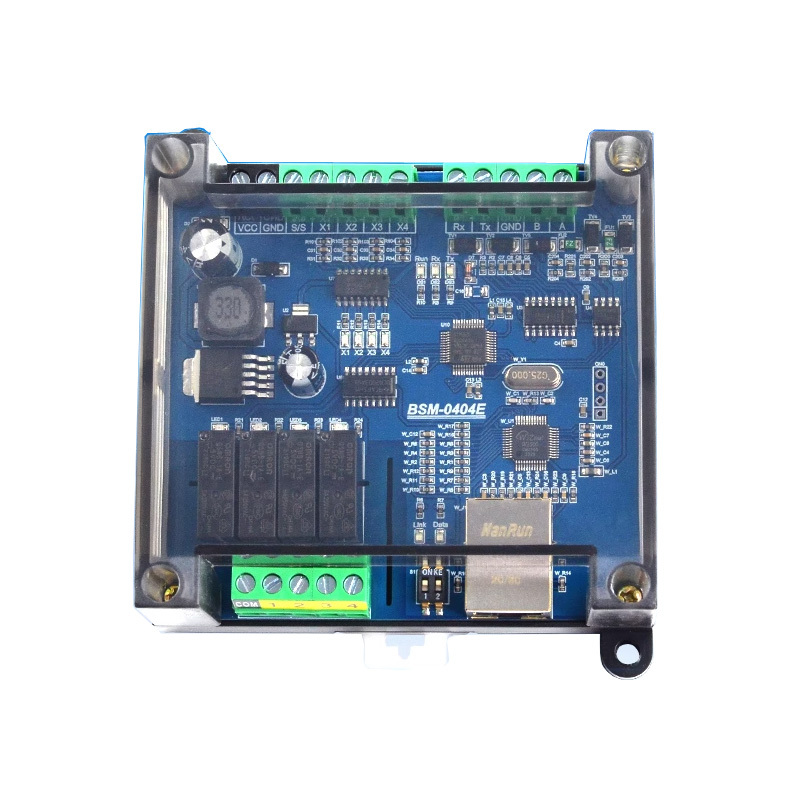

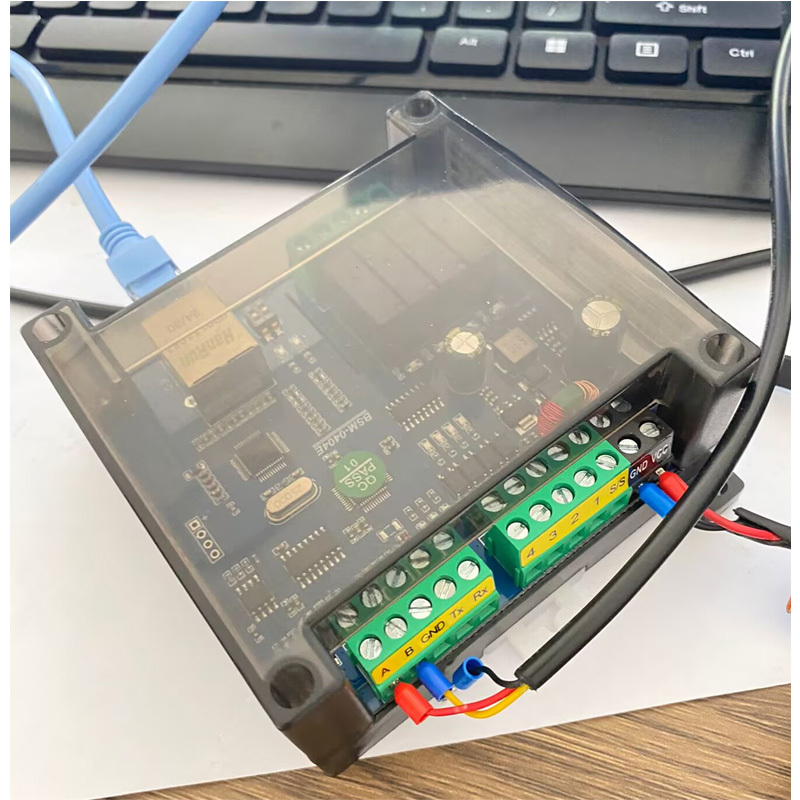

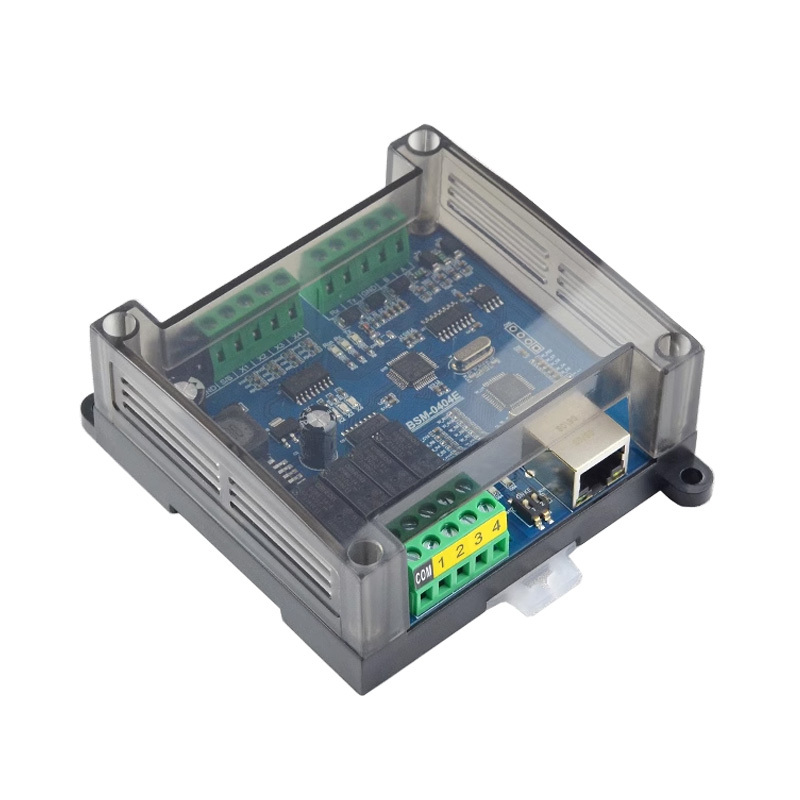

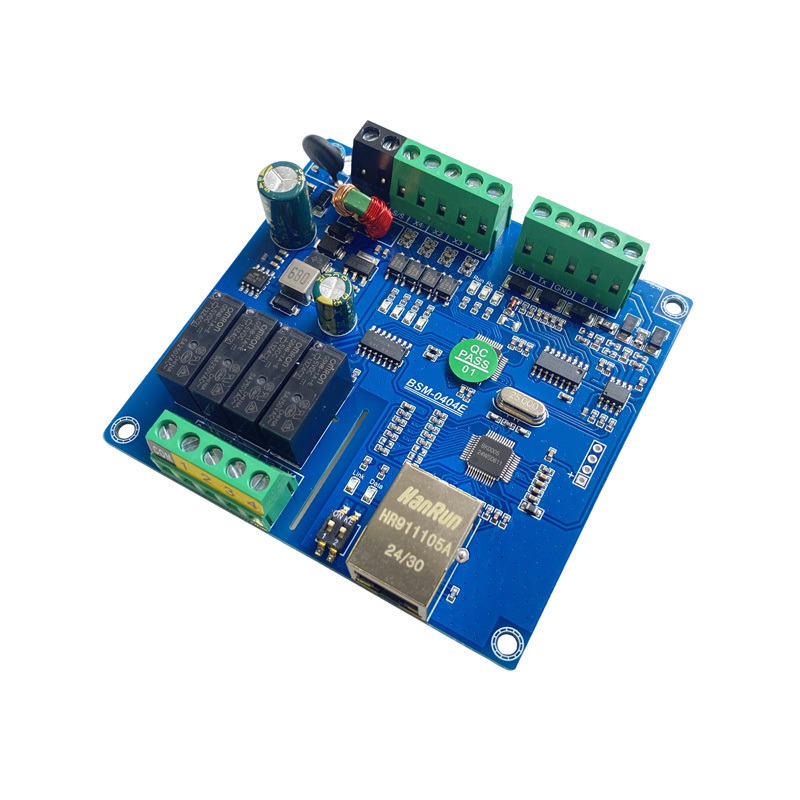

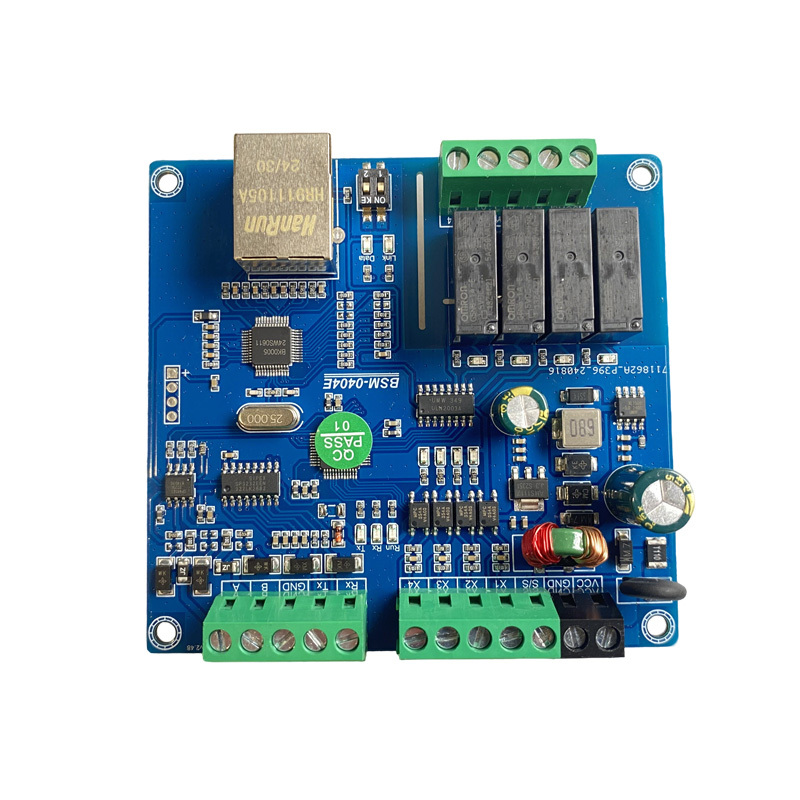

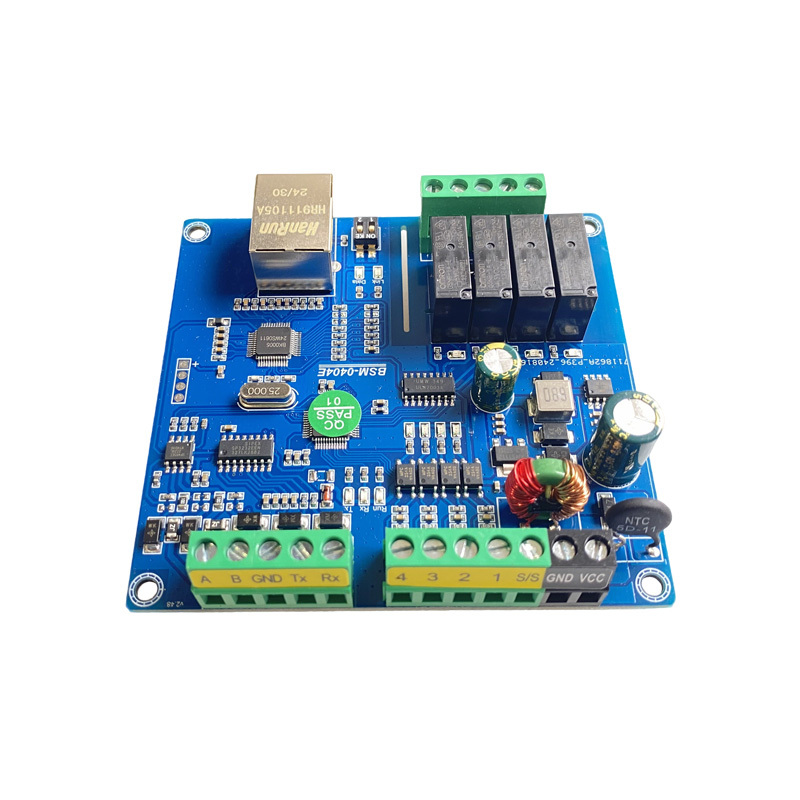

Support 4 channel digital input,4 channel relay output
Support Modbus TCP/RTU/UDP protocol
Characteristic
Support standard Modbus RTU,Modbus TCP/UDP communication protocol;
can connect to industrial control touch screen, PLC,PC upper computer, ARDUINO, raspberry PI, etc;
Switch acquisition is compatible with high and low level signal input modes;
The analog input/output resolution is 12 bits;
Can install to Standard DIN35 rail;
The network module supports simultaneous connection of 3 TCP clients and 1 UDP client;
The network port, RS232 and RS485 communication ports can be used at the same time;
Communication parameters such as station number, baud rate, IP, port number and parity bit can be modified by software;
Functions:
Supports 4 channel configurable I/O relay output control
1. The RJ45 network port supports the setting of each channel separately, and each channel can realize the acquisition and output control respectively
2. When used as input acquisition, the counting function is supported and the count value can be read through MODBUS
Support dry contact on-off switch signal acquisition
3. Support high and low level signal acquisition at the wet connection point
Each supports three communication modes for switching quantity acquisition and control
Supports RS232, RS485 and TCP,the three communication modes respectively collect the switch signal of each channel of the module and control the output
