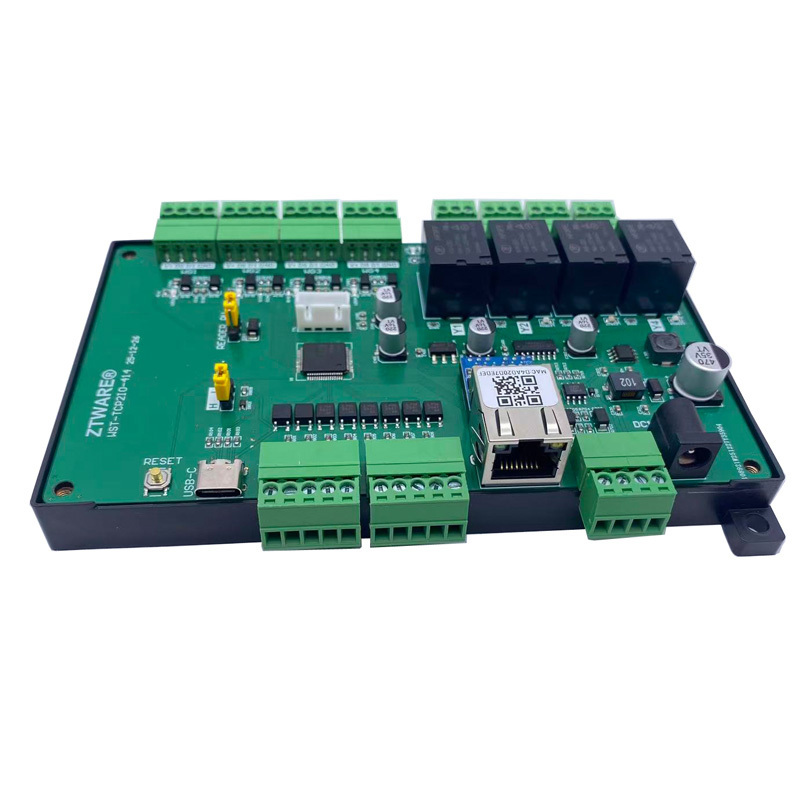

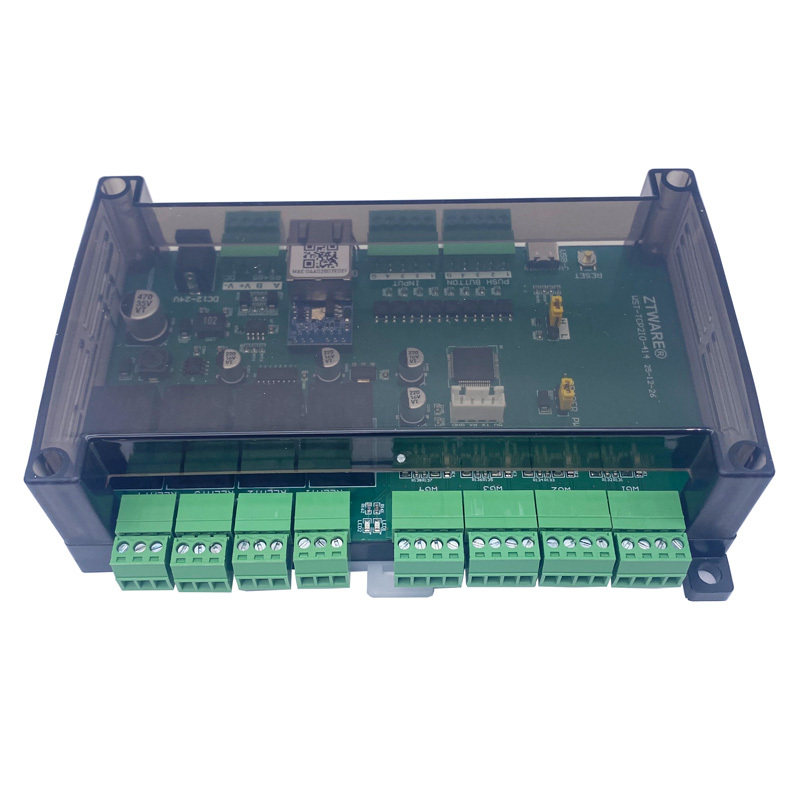

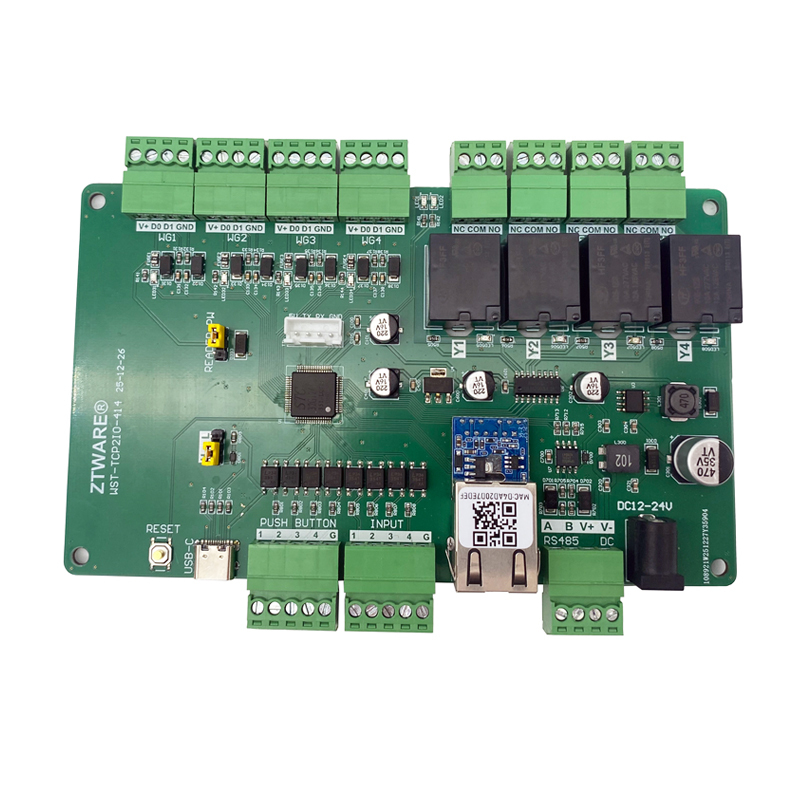

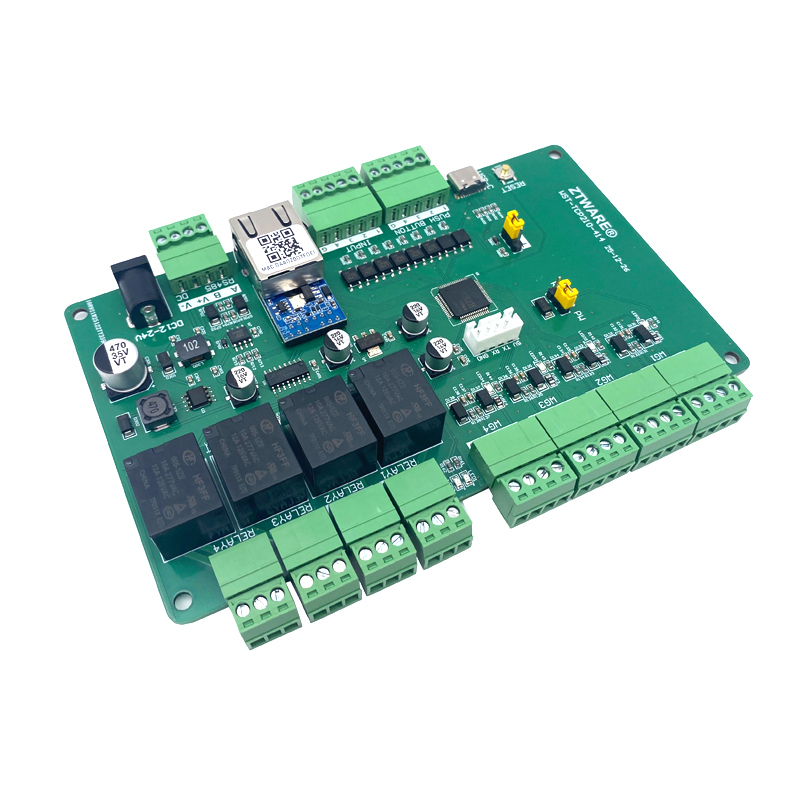

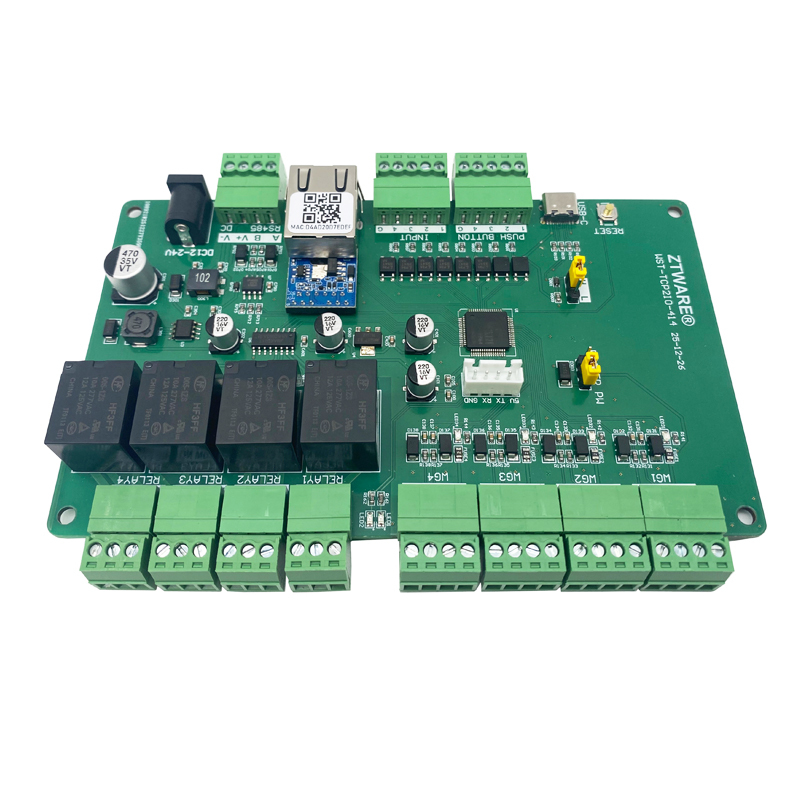

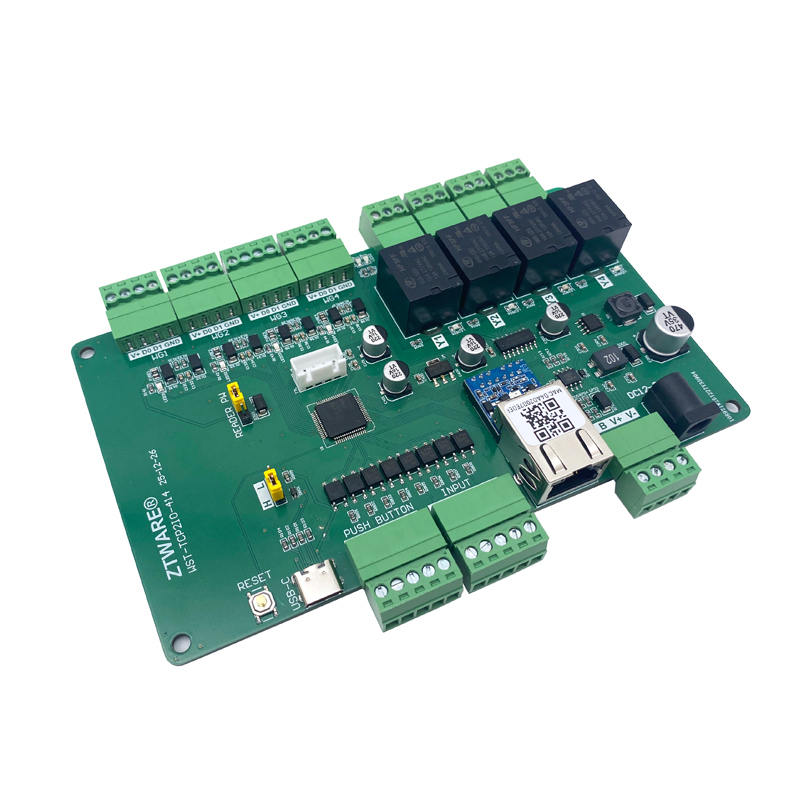

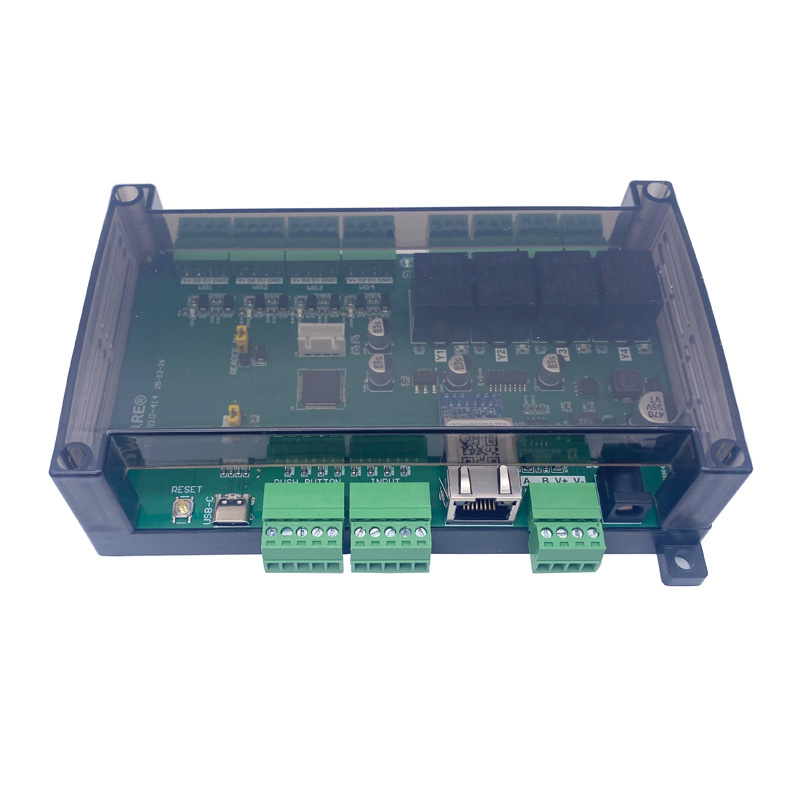

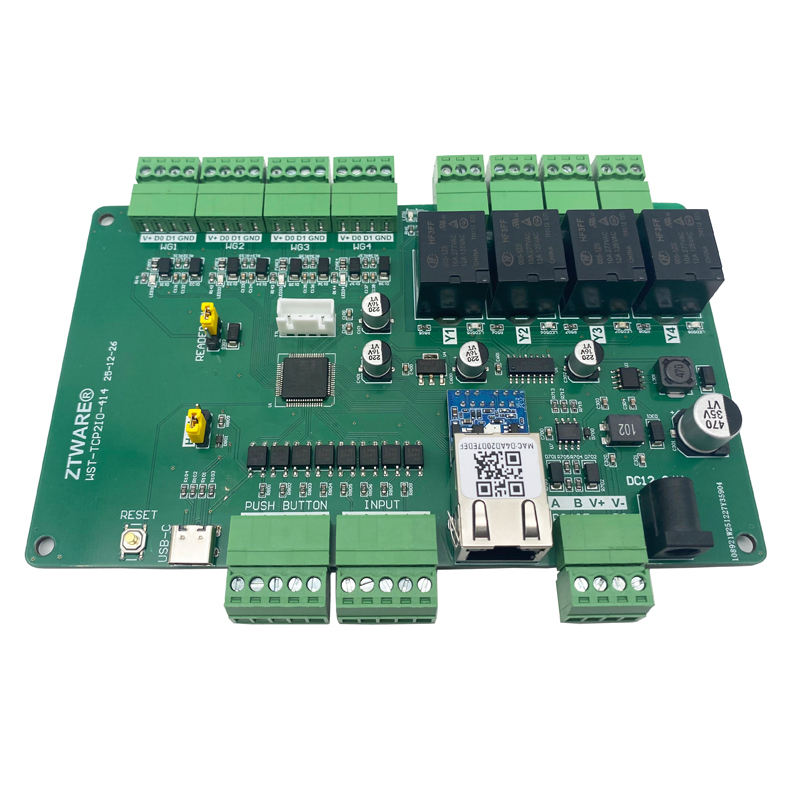

This IOT controller was developed to interface access control system. It has 4CH of Wiegand interface, 4CH input interface, 4 relay output and a 10M/100M Ethernet RJ45 port can be compatible for correspondence of TCP/IP communication. It can connect 4 Wiegand RFID card readers interface to computer via TCP/IP network. And also, can send card numbers from computer to access controller Wiegand input interface by Wiegand 26bit, 34bit, 66bit or other Wiegand bit depend on each project request. The controller working on DC9V to DC24V wide power supply, and also provide a TTL communication interface for testing and upgrade purpose it’s really a good IOT Wiegand control device for access control.WST-TCP2IO-414: 4CH WG to TCP IOT controller (4CH WG, 4 relay output, 4input, 1 RJ45 Ethernet,1 RS485)
Using high quality electronic integrated module, Provide good electrical properties. Support 4 channel Wiegand interface (input and output) Support 4 channel dry contact electric input (IN1, IN2,IN3,IN4)
Support 4 channel of relay output (Relay 1, Relay2,Relay3,Relay4) Support 4 channel of push button (PB1, PB2,PB3,PB4) Working power: DC9V to DC24V (DC power) Restore factory default (Reset button) Upgrade firmware via TTL network (TTL) Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client Across the gateway, switches, routers Can work in LAN, also can work in the Internet (external network) Support various LED to indicate work status Guarantee reliable data transmission and long working life. Set software watchdog timer (about 1s for restart) for keep the device working fine.
Specification
Size
147mm*87mm* 20mm
Power supply
DC9V to DC24V/1A, suggest DC12V
Wiegand interface
support 4CH Wiegand input and output (WG26/34/66 bit)
Input
support 4CH dry contact electric input (provide jump for set high/low level)
