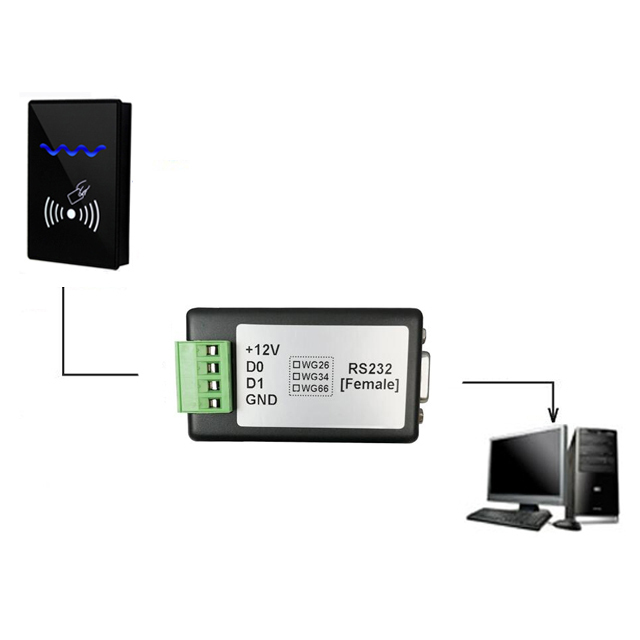

WG2RS232 communication convector is designed for hand-held testing tool or embedding into products manufactured by third-parties, we had widely use for our RFID and access control system solution.
The converter support double-way transmission, can transfer Wiegand 26bit,Wiegand 34bit or other wiegand bit data to RS232 data, also can transfer RS232 data to Wiegand 26bit,Wiegand 34bit or other wiegand bit data, standard Wiegand output 26bit data in default (Wiegand 34bit and other format as optional), and standard RS232 output hex format (ASCII as optional), RS232 communication protocol based on 9600,N,8,1 standard.

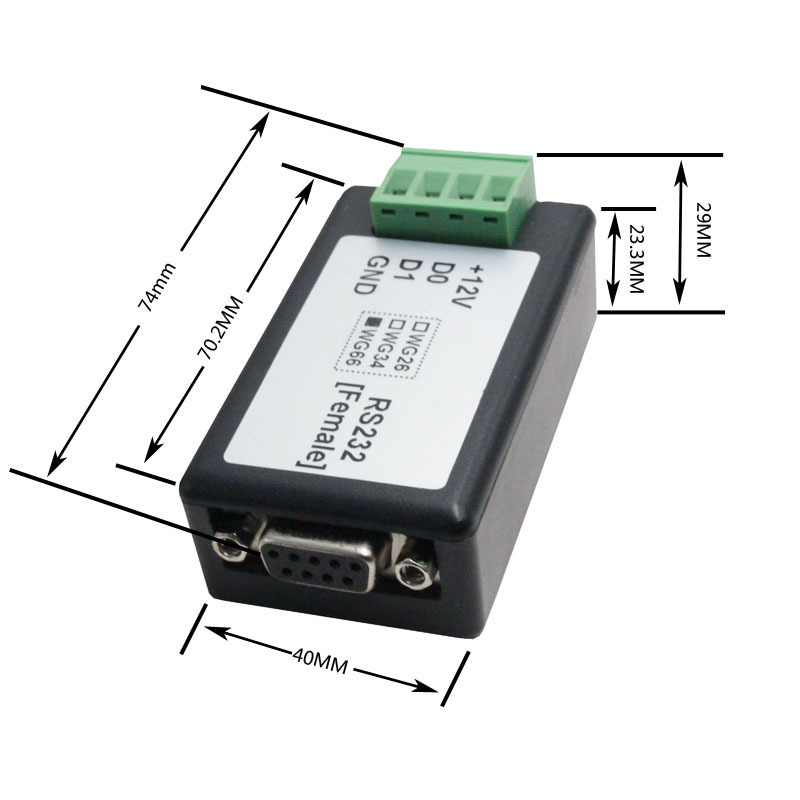

Size: 9*4.5*3.5cm
Net Weight: 0.03KG
Technical parameters:
Operating voltage: DC 9V-12V;
Compatible with RS-232 standards, the 232 input all the way to independent, corresponding to Wiegand all the way out; With an external watchdog to prevent the crash.
Communication Format:
Baud Rate 9600 N 8 1
1, WG26 or WG34 input
4 byte number: 1010795316 = (hex) 3C3F8334
WG26 input (hexadecimal) 3F8334
WG34 input (hexadecimal) 3C3F8334
2, RS232 output
02 31 30 31 30 37 39 35 33 31 36 0D 0A 03
02 is started,
31 3,031,303,739,353,331 36 is the card number (10: 1010795316)
0D 0A is a carriage return
03 is the end.
